CMT-PLA0BN06075MA

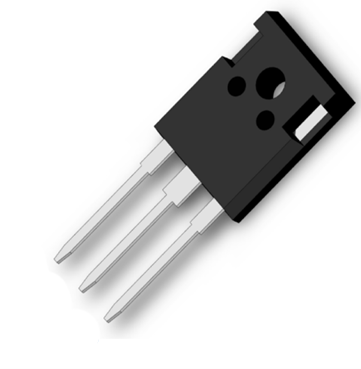

650 V / 75 A IGBT in TO-247-3L
CMT-PLA0BN06075MA is a 650 V / 75 A trench-gate field-stop IGBT optimized for low conduction losses.
The device combines fast switching and short tail currents with a freewheeling diode designed for fast, soft reverse recovery.
Active
Active ordering reference. Contact NAC for stock and lead time.
Specifications & reference details
- Collector-emitter voltage
- 650 V
- Collector current
- 75 A at case temperature 100°C
- Optimization
- Low conduction losses
- Junction-temperature range
- −40°C to +175°C
- Package
- TO-247-3L
Review the manufacturer documentation below for operating conditions and the exact ordering reference.
Ordering information
Search parts, filter specifications or select a column heading to sort. Select a part number to search the NAC store.
| Documentation | ||||
|---|---|---|---|---|
| CMT-PLA0BN06075MA | CMT-PLA0BN06075MA | TO-247-3L | Active | Manufacturer documentation |
No products match these filters. Try a shorter search or reset the filters.
Manufacturer resources
- Manufacturer documentation (PDF)Manufacturer specifications and ordering information.
- Manufacturer product pageManufacturer specifications and ordering information.
Engineering & distribution support
Discuss CMT-PLA0BN06075MA with NAC
Share the exact ordering reference and your design requirements with NAC for help with specifications, part selection and availability.
