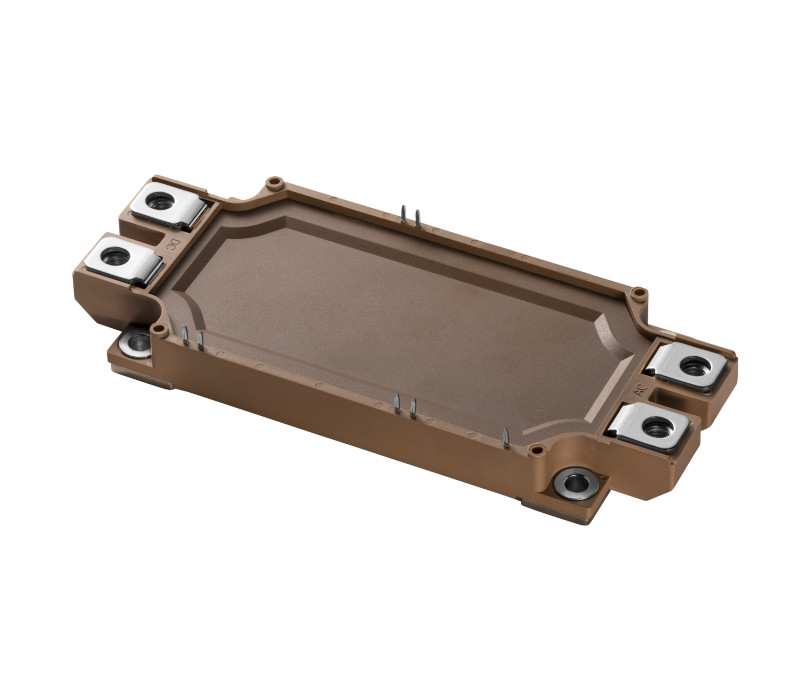

CMT-PLA1BL12300MA
1200 V / 300 A half-bridge IGBT power module
CMT-PLA1BL12300MA is a trench-gate field-stop half-bridge IGBT power module in the CPAK-EDC package. It combines fast switching, short tail currents and a freewheeling diode with fast, soft reverse recovery.
Its 1200 V / 300 A product designation supports power-conversion and motor-drive selection. Use the part-specific datasheet to check current ratings at the intended case temperature.
Active
Active ordering reference. Contact NAC for stock and lead time.
Specifications & reference details
- Collector-voltage designation
- 1200 V
- Current designation
- 300 A; see datasheet for case-temperature conditions
- Topology
- Half bridge
- Junction-temperature range
- −40°C to +175°C
- Package
- CPAK-EDC
Review the manufacturer documentation below for operating conditions and the exact ordering reference.
