CXT-PLA3BG07820RA
750 V / 820 A three-phase IGBT power module

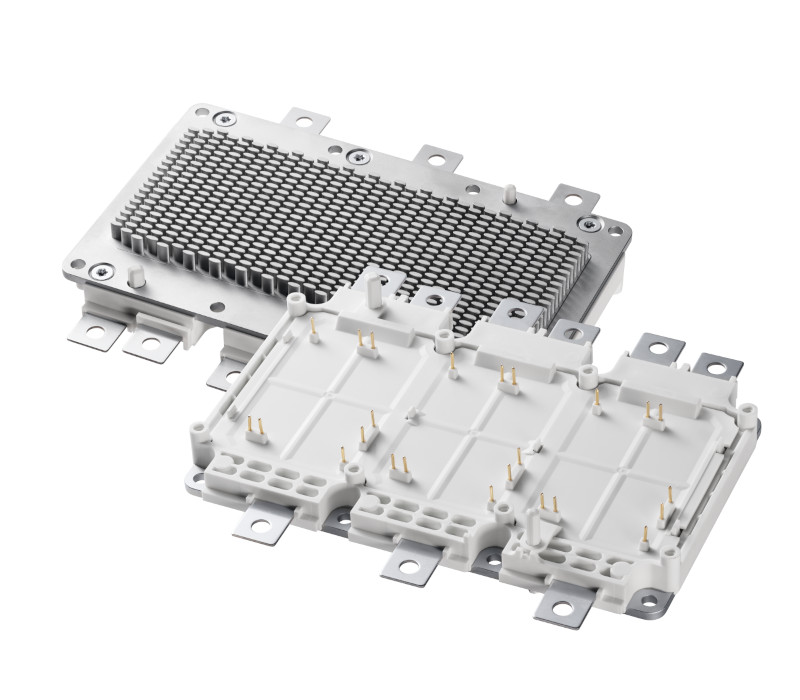

This AQG-324-qualified trench-gate field-stop IGBT module combines three-phase power switching with a CPAK-HPC copper pin-fin baseplate for direct liquid cooling.
The manufacturer specifies 750 V maximum collector voltage and 820 A implemented collector current. An embedded NTC sensor and the pin-fin cooling structure support thermal integration.
Active
Active ordering reference. Contact NAC for stock and lead time.
Specifications & reference details
- Maximum collector voltage
- 750 V
- Implemented collector current
- 820 A
- Topology
- Three-phase IGBT
- Junction-temperature range
- −40°C to +175°C
- Package / baseplate
- CPAK-HPC; copper ellipsoid pin-fin
- Qualification
- AQG-324 automotive qualified
- Temperature sensing
- Embedded NTC sensor
Review the manufacturer documentation below for operating conditions and the exact ordering reference.
Ordering information
Search parts, filter specifications or select a column heading to sort. Select a part number to search the NAC store.
| Documentation | ||||
|---|---|---|---|---|
| CXT-PLA3BG07820RA | CXT-PLA3BG07820RA | CPAK-HPC | Active | Manufacturer documentation |
No products match these filters. Try a shorter search or reset the filters.
Manufacturer resources
- Manufacturer documentation (PDF)Manufacturer specifications and ordering information.
- Manufacturer product pageManufacturer specifications and ordering information.
Engineering & distribution support
Discuss CXT-PLA3BG07820RA with NAC
Share the exact ordering reference and your design requirements with NAC for help with specifications, part selection and availability.
