Stackpole ASR Anti-Surge Axial Resistors

Stackpole ASR anti-surge resistors use an axial leaded, through-hole design with flameproof coating. All listed parts have ±5% resistance tolerance. Compare resistance, power rating, working-voltage limit, and surge voltage below.

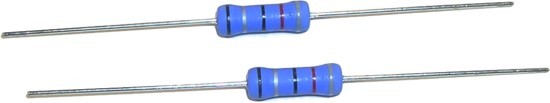

Stackpole ASR series resistors
Representative series image; actual appearance varies by part.

Download the ASR series datasheet (PDF)

Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.

350 Stackpole ASR parts
Part NumberResistancePower at 70 °C (W)Max Working Voltage (V)Surge Voltage (V)Datasheet
Part NumberResistancePower at 70 °C (W)Max Working Voltage (V)Surge Voltage (V)Datasheet
ASR14JA100K100 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA100R100 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA10K010 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA10M010 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA10R010 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA110K110 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA110R110 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA11K011 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA11M011 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA11R011 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA120K120 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA120R120 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA12K012 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA12M012 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA12R012 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA130K130 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA130R130 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA13K013 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA13R013 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA150K150 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA150R150 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA15K015 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA15R015 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA160K160 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA160R160 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA16K016 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA16R016 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA180K180 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA180R180 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA18K018 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA18R018 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA1K001 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA1K101.1 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA1K201.2 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA1K301.3 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA1K501.5 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA1K601.6 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA1K801.8 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA1M001 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA1M101.1 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA1M201.2 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA1M301.3 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA1M501.5 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA1M601.6 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA1M801.8 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA200K200 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA200R200 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA20K020 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA20R020 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA220K220 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA220R220 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA22K022 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA22R022 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA240K240 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA240R240 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA24K024 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA24R024 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA270K270 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA270R270 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA27K027 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA27R027 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA2K002 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA2K202.2 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA2K402.4 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA2K702.7 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA2M002 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA2M202.2 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA2M402.4 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA2M702.7 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA300K300 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA300R300 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA30K030 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA30R030 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA330K330 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA330R330 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA33K033 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA33R033 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA360K360 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA360R360 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA36K036 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA36R036 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA390K390 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA390R390 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA39K039 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA39R039 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA3K003 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA3K303.3 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA3K603.6 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA3K903.9 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA3M003 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA3M303.3 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA3M603.6 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA3M903.9 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA3R303.3 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA3R603.6 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA3R903.9 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA430K430 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA430R430 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA43K043 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA43R043 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA470K470 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA470R470 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA47K047 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA47R047 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA4K304.3 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA4K704.7 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA4M304.3 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA4M704.7 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA4R304.3 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA4R704.7 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA510K510 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA510R510 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA51K051 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA51R051 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA560K560 kΩ0.251600 DC / 1150 AC3000PDF
ASR14JA560R560 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA56K056 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA56R056 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA5K105.1 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA5K605.6 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA5M105.1 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA5M605.6 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA5R105.1 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA5R605.6 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA620K620 kΩ0.251600 DC / 1150 AC3000PDF
ASR14JA620R620 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA62K062 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA62R062 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA680K680 kΩ0.251600 DC / 1150 AC3000PDF
ASR14JA680R680 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA68K068 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA68R068 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA6K206.2 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA6K806.8 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA6M206.2 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA6M806.8 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA6R206.2 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA6R806.8 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA750K750 kΩ0.251600 DC / 1150 AC3000PDF
ASR14JA750R750 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA75K075 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA75R075 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA7K507.5 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA7M507.5 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA7R507.5 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA820K820 kΩ0.251600 DC / 1150 AC3000PDF
ASR14JA820R820 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA82K082 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA82R082 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA8K208.2 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA8M208.2 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA8R208.2 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA910K910 kΩ0.251600 DC / 1150 AC3000PDF
ASR14JA910R910 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA91K091 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA91R091 Ω0.251600 DC / 1150 AC1000PDF
ASR14JA9K109.1 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JA9M109.1 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JA9R109.1 Ω0.251600 DC / 1150 AC1000PDF
ASR14JB10M010 MΩ0.251600 DC / 1150 AC3000PDF
ASR14JB1K001 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JB27K027 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JB2K202.2 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JB560R560 Ω0.251600 DC / 1150 AC1000PDF
ASR14JB6K206.2 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JT100K100 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JT100R100 Ω0.251600 DC / 1150 AC1000PDF
ASR14JT10K010 kΩ0.251600 DC / 1150 AC1000PDF
ASR14JT2M202.2 MΩ0.251600 DC / 1150 AC3000PDF
ASR1JA100K100 kΩ140005000PDF
ASR1JA100R100 Ω140005000PDF
ASR1JA10K010 kΩ140005000PDF
ASR1JA10M010 MΩ1400010000PDF
ASR1JA10R010 Ω140005000PDF
ASR1JA110K110 kΩ140005000PDF
ASR1JA110R110 Ω140005000PDF
ASR1JA11K011 kΩ140005000PDF
ASR1JA11M011 MΩ1400010000PDF
ASR1JA11R011 Ω140005000PDF
ASR1JA120K120 kΩ140005000PDF
ASR1JA120R120 Ω140005000PDF
ASR1JA12K012 kΩ140005000PDF
ASR1JA12M012 MΩ1400010000PDF
ASR1JA12R012 Ω140005000PDF
ASR1JA130K130 kΩ140005000PDF
ASR1JA130R130 Ω140005000PDF
ASR1JA13K013 kΩ140005000PDF
ASR1JA13R013 Ω140005000PDF
ASR1JA150K150 kΩ140005000PDF
ASR1JA150R150 Ω140005000PDF
ASR1JA15K015 kΩ140005000PDF
ASR1JA15R015 Ω140005000PDF
ASR1JA160K160 kΩ140005000PDF
ASR1JA160R160 Ω140005000PDF
ASR1JA16K016 kΩ140005000PDF
ASR1JA16R016 Ω140005000PDF
ASR1JA180K180 kΩ140005000PDF
ASR1JA180R180 Ω140005000PDF
ASR1JA18K018 kΩ140005000PDF
ASR1JA18R018 Ω140005000PDF
ASR1JA1K001 kΩ140005000PDF
ASR1JA1K101.1 kΩ140005000PDF
ASR1JA1K201.2 kΩ140005000PDF
ASR1JA1K301.3 kΩ140005000PDF
ASR1JA1K501.5 kΩ140005000PDF
ASR1JA1K601.6 kΩ140005000PDF
ASR1JA1K801.8 kΩ140005000PDF
ASR1JA1M001 MΩ1400010000PDF
ASR1JA1M101.1 MΩ1400010000PDF
ASR1JA1M201.2 MΩ1400010000PDF
ASR1JA1M301.3 MΩ1400010000PDF
ASR1JA1M501.5 MΩ1400010000PDF
ASR1JA1M601.6 MΩ1400010000PDF
ASR1JA1M801.8 MΩ1400010000PDF
ASR1JA200K200 kΩ140005000PDF
ASR1JA200R200 Ω140005000PDF
ASR1JA20K020 kΩ140005000PDF
ASR1JA20R020 Ω140005000PDF
ASR1JA220K220 kΩ140005000PDF
ASR1JA220R220 Ω140005000PDF
ASR1JA22K022 kΩ140005000PDF
ASR1JA22R022 Ω140005000PDF
ASR1JA240K240 kΩ140005000PDF
ASR1JA240R240 Ω140005000PDF
ASR1JA24K024 kΩ140005000PDF
ASR1JA24R024 Ω140005000PDF
ASR1JA270K270 kΩ140005000PDF
ASR1JA270R270 Ω140005000PDF
ASR1JA27K027 kΩ140005000PDF
ASR1JA27R027 Ω140005000PDF
ASR1JA2K002 kΩ140005000PDF
ASR1JA2K202.2 kΩ140005000PDF
ASR1JA2K402.4 kΩ140005000PDF
ASR1JA2K702.7 kΩ140005000PDF
ASR1JA2M002 MΩ1400010000PDF
ASR1JA2M202.2 MΩ1400010000PDF
ASR1JA2M402.4 MΩ1400010000PDF
ASR1JA2M702.7 MΩ1400010000PDF
ASR1JA300K300 kΩ140005000PDF
ASR1JA300R300 Ω140005000PDF
ASR1JA30K030 kΩ140005000PDF
ASR1JA30R030 Ω140005000PDF
ASR1JA330K330 kΩ140005000PDF
ASR1JA330R330 Ω140005000PDF
ASR1JA33K033 kΩ140005000PDF
ASR1JA33R033 Ω140005000PDF
ASR1JA360K360 kΩ140005000PDF
ASR1JA360R360 Ω140005000PDF
ASR1JA36K036 kΩ140005000PDF
ASR1JA36R036 Ω140005000PDF
ASR1JA390K390 kΩ140005000PDF
ASR1JA390R390 Ω140005000PDF
ASR1JA39K039 kΩ140005000PDF
ASR1JA39R039 Ω140005000PDF
ASR1JA3K003 kΩ140005000PDF
ASR1JA3K303.3 kΩ140005000PDF
ASR1JA3K603.6 kΩ140005000PDF
ASR1JA3K903.9 kΩ140005000PDF
ASR1JA3M003 MΩ1400010000PDF
ASR1JA3M303.3 MΩ1400010000PDF
ASR1JA3M603.6 MΩ1400010000PDF
ASR1JA3M903.9 MΩ1400010000PDF
ASR1JA3R303.3 Ω140005000PDF
ASR1JA3R603.6 Ω140005000PDF
ASR1JA3R903.9 Ω140005000PDF
ASR1JA430K430 kΩ140005000PDF
ASR1JA430R430 Ω140005000PDF
ASR1JA43K043 kΩ140005000PDF
ASR1JA43R043 Ω140005000PDF
ASR1JA470K470 kΩ140005000PDF
ASR1JA470R470 Ω140005000PDF
ASR1JA47K047 kΩ140005000PDF
ASR1JA47R047 Ω140005000PDF
ASR1JA4K304.3 kΩ140005000PDF
ASR1JA4K704.7 kΩ140005000PDF
ASR1JA4M304.3 MΩ1400010000PDF
ASR1JA4M704.7 MΩ1400010000PDF
ASR1JA4R304.3 Ω140005000PDF
ASR1JA4R704.7 Ω140005000PDF
ASR1JA510K510 kΩ140005000PDF
ASR1JA510R510 Ω140005000PDF
ASR1JA51K051 kΩ140005000PDF
ASR1JA51R051 Ω140005000PDF
ASR1JA560K560 kΩ1400010000PDF
ASR1JA560R560 Ω140005000PDF
ASR1JA56K056 kΩ140005000PDF
ASR1JA56R056 Ω140005000PDF
ASR1JA5K105.1 kΩ140005000PDF
ASR1JA5K605.6 kΩ140005000PDF
ASR1JA5M105.1 MΩ1400010000PDF
ASR1JA5M605.6 MΩ1400010000PDF
ASR1JA5R105.1 Ω140005000PDF
ASR1JA5R605.6 Ω140005000PDF
ASR1JA620K620 kΩ1400010000PDF
ASR1JA620R620 Ω140005000PDF
ASR1JA62K062 kΩ140005000PDF
ASR1JA62R062 Ω140005000PDF
ASR1JA680K680 kΩ1400010000PDF
ASR1JA680R680 Ω140005000PDF
ASR1JA68K068 kΩ140005000PDF
ASR1JA68R068 Ω140005000PDF
ASR1JA6K206.2 kΩ140005000PDF
ASR1JA6K806.8 kΩ140005000PDF
ASR1JA6M206.2 MΩ1400010000PDF
ASR1JA6M806.8 MΩ1400010000PDF
ASR1JA6R206.2 Ω140005000PDF
ASR1JA6R806.8 Ω140005000PDF
ASR1JA750K750 kΩ1400010000PDF
ASR1JA750R750 Ω140005000PDF
ASR1JA75K075 kΩ140005000PDF
ASR1JA75R075 Ω140005000PDF
ASR1JA7K507.5 kΩ140005000PDF
ASR1JA7M507.5 MΩ1400010000PDF
ASR1JA7R507.5 Ω140005000PDF
ASR1JA820K820 kΩ1400010000PDF
ASR1JA820R820 Ω140005000PDF
ASR1JA82K082 kΩ140005000PDF
ASR1JA82R082 Ω140005000PDF
ASR1JA8K208.2 kΩ140005000PDF
ASR1JA8M208.2 MΩ1400010000PDF
ASR1JA8R208.2 Ω140005000PDF
ASR1JA910K910 kΩ1400010000PDF
ASR1JA910R910 Ω140005000PDF
ASR1JA91K091 kΩ140005000PDF
ASR1JA91R091 Ω140005000PDF
ASR1JA9K109.1 kΩ140005000PDF
ASR1JA9M109.1 MΩ1400010000PDF
ASR1JA9R109.1 Ω140005000PDF
ASR1JB100R100 Ω140005000PDF
ASR1JB10K010 kΩ140005000PDF
ASR1JB10R010 Ω140005000PDF
ASR1JB150R150 Ω140005000PDF
ASR1JB15K015 kΩ140005000PDF
ASR1JB1K001 kΩ140005000PDF
ASR1JB200R200 Ω140005000PDF
ASR1JB20K020 kΩ140005000PDF
ASR1JB220R220 Ω140005000PDF
ASR1JB22K022 kΩ140005000PDF
ASR1JB22M022 MΩ14000PDF
ASR1JB2K202.2 kΩ140005000PDF
ASR1JB330R330 Ω140005000PDF
ASR1JB39K039 kΩ140005000PDF
ASR1JB3K003 kΩ140005000PDF
ASR1JB3K303.3 kΩ140005000PDF
ASR1JB470K470 kΩ140005000PDF
ASR1JB47K047 kΩ140005000PDF
ASR1JB4K704.7 kΩ140005000PDF
ASR1JB56K056 kΩ140005000PDF
ASR1JB680R680 Ω140005000PDF
ASR1JB6K806.8 kΩ140005000PDF

Power ratings apply at 70 °C. ASR14 has separate DC and AC working-voltage limits. Actual working voltage is limited by the applicable maximum and the square root of power multiplied by resistance. Surge ratings refer to ten discharges from a 0.01 µF capacitor at five-second intervals, not continuous operation. The 22 MΩ part exceeds the standard datasheet range; its unverified surge rating remains blank. Consult the ASR section of the shared datasheet for derating.
