Stackpole BVM Ceramic Housed Vertical Bracket Mount Resistors

Stackpole BVM power resistors use a ceramic housing with mounting brackets for vertical installation. The family has flameproof inorganic construction and a high temperature potting compound. All listed parts share ±5% tolerance and a standard ±300 ppm/°C temperature coefficient. Compare resistance, power, and element technology below.

Stackpole BVM series resistors

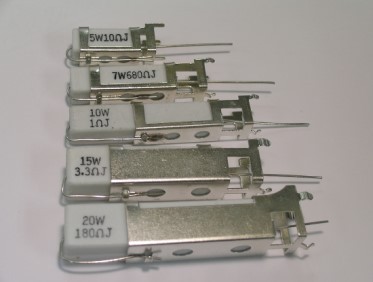

Representative series image; actual appearance varies by part.

Download the BVM series datasheet (PDF)

Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.

16 Stackpole BVM parts
Part NumberResistance (Ω)Power at 70 °C (W)TechnologyDatasheet
Part NumberResistance (Ω)Power at 70 °C (W)TechnologyDatasheet
BVM10JB10K01000010Metal OxidePDF
BVM10JB15K01500010Metal OxidePDF
BVM10JBR5000.510WirewoundPDF
BVM15JB15K01500015Metal OxidePDF
BVM15JB5R00515WirewoundPDF
BVM20JB15K01500020Metal OxidePDF
BVM25JB10R01025WirewoundPDF
BVM25JB200R20025WirewoundPDF
BVM25JB22R02225WirewoundPDF
BVM25JB250R25025WirewoundPDF
BVM25JB300R30025WirewoundPDF
BVM25JB400R40025WirewoundPDF
BVM25JB50R05025WirewoundPDF
BVM25JB6K80680025Metal OxidePDF
BVM25JB700R70025WirewoundPDF
BVM7JB2K7027007Metal OxidePDF

Power ratings apply at 70 °C. The operating temperature range is −55 to +275 °C. Consult the datasheet for derating, voltage limits, and mounting details.
