Stackpole CBF Ceramic Housed Wirewound Resistors with Standoffs

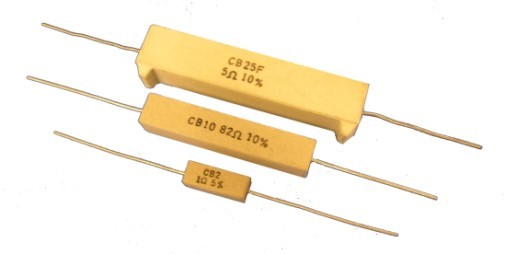

Stackpole CBF ceramic housed wirewound power resistors have axial leads and body standoffs for through-hole mounting. The ceramic housing provides a fireproof construction with high thermal conductivity. Compare the listed parts by resistance, tolerance, and available power ratings.
Download the CBF series datasheet (PDF)
Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.
| Part Number | Resistance (Ω) | Tolerance (±%) | Power at 70 °C (W) | Datasheet |
|---|---|---|---|---|
| Part Number | Resistance (Ω) | Tolerance (±%) | Power at 70 °C (W) | Datasheet |
| CBF10JB100R | 100 | 5 | 10 | |
| CBF10JB22R0 | 22 | 5 | 10 | |
| CBF10JB2R20 | 2.2 | 5 | 10 | |
| CBF10JB3R00 | 3 | 5 | 10 | |
| CBF10JB3R30 | 3.3 | 5 | 10 | |
| CBF10JB4R00 | 4 | 5 | 10 | |
| CBF10JB5R00 | 5 | 5 | 10 | |
| CBF10JB8R20 | 8.2 | 5 | 10 | |
| CBF25JB22R0 | 22 | 5 | ||
| CBF5KB470R | 470 | 10 | 5 |
