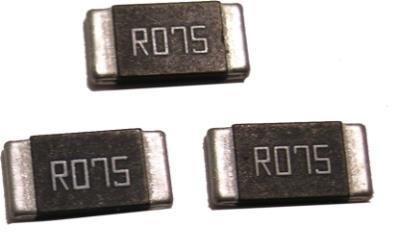

Stackpole CSM Molded Metal Plate Current Sensing Resistors
Stackpole CSM molded metal plate resistors provide low resistance values for current sensing in power supplies and motor drives. These surface mount parts are available in 0603 and 2512 packages; the 2512 size is qualified to AEC-Q200.
Download the CSM series datasheet (PDF)
Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.
| Part Number | Case Size | Resistance | Tolerance (±%) | Power (W) | TCR (±ppm/°C) | Datasheet |
|---|---|---|---|---|---|---|
| Part Number | Case Size | Resistance | Tolerance (±%) | Power (W) | TCR (±ppm/°C) | Datasheet |
| CSM0603FT10L0 | 0603 | 10 mΩ | 1 | 0.33 | ||
| CSM0603JT10L0 | 0603 | 10 mΩ | 5 | 0.33 | ||
| CSM2512FT10L0 | 2512 | 10 mΩ | 1 | 3 | 50 | |
| CSM2512FT12L0 | 2512 | 12 mΩ | 1 | 3 | 50 | |
| CSM2512FT13L0 | 2512 | 13 mΩ | 1 | 3 | 50 | |
| CSM2512FT15L0 | 2512 | 15 mΩ | 1 | 3 | 50 | |
| CSM2512FT16L0 | 2512 | 16 mΩ | 1 | 3 | 50 | |
| CSM2512FT18L0 | 2512 | 18 mΩ | 1 | 3 | 50 | |
| CSM2512FT1L00 | 2512 | 1 mΩ | 1 | 3 | 50 | |
| CSM2512FT1L50 | 2512 | 1.5 mΩ | 1 | 3 | 50 | |
| CSM2512FT20L0 | 2512 | 20 mΩ | 1 | 3 | 50 | |
| CSM2512FT22L0 | 2512 | 22 mΩ | 1 | 3 | 50 | |
| CSM2512FT25L0 | 2512 | 25 mΩ | 1 | 3 | 50 | |
| CSM2512FT2L00 | 2512 | 2 mΩ | 1 | 3 | 50 | |
| CSM2512FT2L50 | 2512 | 2.5 mΩ | 1 | 3 | 50 | |
| CSM2512FT30L0 | 2512 | 30 mΩ | 1 | 3 | 50 | |
| CSM2512FT33L0 | 2512 | 33 mΩ | 1 | 3 | 50 | |
| CSM2512FT3L00 | 2512 | 3 mΩ | 1 | 3 | 50 | |
| CSM2512FT40L0 | 2512 | 40 mΩ | 1 | 3 | 50 | |
| CSM2512FT4L00 | 2512 | 4 mΩ | 1 | 3 | 50 | |
| CSM2512FT50L0 | 2512 | 50 mΩ | 1 | 3 | 50 | |
| CSM2512FT5L00 | 2512 | 5 mΩ | 1 | 3 | 50 | |
| CSM2512FT6L00 | 2512 | 6 mΩ | 1 | 3 | 50 | |
| CSM2512FT70L0 | 2512 | 70 mΩ | 1 | 3 | 50 | |
| CSM2512FT75L0 | 2512 | 75 mΩ | 1 | 3 | 50 | |
| CSM2512FT7L00 | 2512 | 7 mΩ | 1 | 3 | 50 | |
| CSM2512FT8L00 | 2512 | 8 mΩ | 1 | 3 | 50 | |
| CSM2512FTR100 | 2512 | 100 mΩ | 1 | 3 | 50 | |
| CSM2512JT10L0 | 2512 | 10 mΩ | 5 | 3 | 50 |
