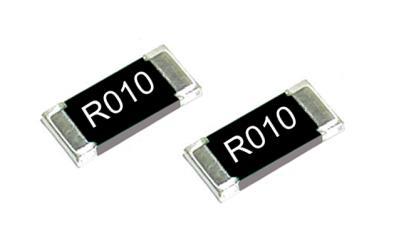

Stackpole CSRF Foil on Ceramic Current Sensing Resistors
Stackpole CSRF current sensing chip resistors use metal foil on a ceramic substrate in a surface mount package. Compare case size, resistance, tolerance, power, temperature coefficient, and standard or high-power variants below.
Download the CSRF series datasheet (PDF)
Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.
| Part Number | Case Size | Resistance | Tolerance (±%) | Power (W) | TCR (±ppm/°C) | Variant | Datasheet |
|---|---|---|---|---|---|---|---|
| Part Number | Case Size | Resistance | Tolerance (±%) | Power (W) | TCR (±ppm/°C) | Variant | Datasheet |
| CSRF0402FT10L0 | 0402 | 10 mΩ | 1 | 0.125 | 200 | Standard | |
| CSRF0402FT10L0-HP | 0402 | 10 mΩ | 1 | 0.25 | 100 | HP | |
| CSRF0402FT15L0 | 0402 | 15 mΩ | 1 | 0.125 | 200 | Standard | |
| CSRF0402FT20L0 | 0402 | 20 mΩ | 1 | 0.125 | 200 | Standard | |
| CSRF0402FT3L00 | 0402 | 3 mΩ | 1 | 0.125 | 300 | Standard | |
| CSRF0402FT5L00 | 0402 | 5 mΩ | 1 | 0.125 | 300 | Standard | |
| CSRF0402JT10L0 | 0402 | 10 mΩ | 5 | 0.125 | 200 | Standard | |
| CSRF0402JT10L0-HP | 0402 | 10 mΩ | 5 | 0.25 | 100 | HP | |
| CSRF0508FT10L0 | 0508 | 10 mΩ | 1 | 1 | 50 | Standard | |
| CSRF0508FT20L0 | 0508 | 20 mΩ | 1 | 1 | 50 | Standard | |
| CSRF0603FT10L0 | 0603 | 10 mΩ | 1 | 0.25 | 75 | Standard | |
| CSRF0603FT10L0-HP | 0603 | 10 mΩ | 1 | 0.5 | 75 | HP | |
| CSRF0603FT2L50 | 0603 | 2.5 mΩ | 1 | 0.25 | 100 | Standard | |
| CSRF0603FT2L50-HP | 0603 | 2.5 mΩ | 1 | 0.5 | 100 | HP | |
| CSRF0603FT5L00 | 0603 | 5 mΩ | 1 | 0.25 | 150 | Standard | |
| CSRF0603FT5L00-HP | 0603 | 5 mΩ | 1 | 0.5 | 100 | HP | |
| CSRF0603JT10L0 | 0603 | 10 mΩ | 5 | 0.25 | 75 | Standard | |
| CSRF0603JT5L00 | 0603 | 5 mΩ | 5 | 0.25 | 150 | Standard | |
| CSRF0603JT5L00-HP | 0603 | 5 mΩ | 5 | 0.5 | 100 | HP | |
| CSRF0612FT10L0 | 0612 | 10 mΩ | 1 | 1.5 | 75 | Standard | |
| CSRF0612FT12L0 | 0612 | 12 mΩ | 1 | 1.5 | 75 | Standard | |
| CSRF0612FT20L0 | 0612 | 20 mΩ | 1 | 1.5 | 75 | Standard | |
| CSRF0612FT2L00 | 0612 | 2 mΩ | 1 | 1.5 | 100 | Standard | |
| CSRF0612FT5L00 | 0612 | 5 mΩ | 1 | 1.5 | 75 | Standard | |
| CSRF0612FT7L00 | 0612 | 7 mΩ | 1 | 1.5 | 75 | Standard | |
| CSRF0612FT8L00 | 0612 | 8 mΩ | 1 | 1.5 | 75 | Standard | |
| CSRF0612JT10L0 | 0612 | 10 mΩ | 5 | 1.5 | 75 | Standard | |
| CSRF0805FT10L0 | 0805 | 10 mΩ | 1 | 0.5 | 100 | Standard | |
| CSRF0805FT10L0-HP | 0805 | 10 mΩ | 1 | 1 | 50 | HP | |
| CSRF0805FT11L0 | 0805 | 11 mΩ | 1 | 0.5 | 50 | Standard | |
| CSRF0805FT12L0 | 0805 | 12 mΩ | 1 | 0.5 | 50 | Standard | |
| CSRF0805FT13L0 | 0805 | 13 mΩ | 1 | 0.5 | 50 | Standard | |
| CSRF0805FT15L0 | 0805 | 15 mΩ | 1 | 0.5 | 50 | Standard | |
| CSRF0805FT16L0 | 0805 | 16 mΩ | 1 | 0.5 | 50 | Standard | |
| CSRF0805FT18L0 | 0805 | 18 mΩ | 1 | 0.5 | 50 | Standard | |
| CSRF0805FT20L0 | 0805 | 20 mΩ | 1 | 0.5 | 50 | Standard | |
| CSRF0805FT22L0 | 0805 | 22 mΩ | 1 | 0.5 | 50 | Standard | |
| CSRF0805FT24L0 | 0805 | 24 mΩ | 1 | 0.5 | 50 | Standard | |
| CSRF0805FT25L0 | 0805 | 25 mΩ | 1 | 0.5 | 50 | Standard | |
| CSRF0805FT27L0 | 0805 | 27 mΩ | 1 | 0.5 | 50 | Standard | |
| CSRF0805FT30L0 | 0805 | 30 mΩ | 1 | 0.5 | 50 | Standard | |
| CSRF0805FT5L00 | 0805 | 5 mΩ | 1 | 0.5 | 100 | Standard | |
| CSRF0805JT10L0 | 0805 | 10 mΩ | 5 | 0.5 | 100 | Standard | |
| CSRF0805JT10L0-HP | 0805 | 10 mΩ | 5 | 1 | 50 | HP | |
| CSRF0805JT11L0 | 0805 | 11 mΩ | 5 | 0.5 | 50 | Standard | |
| CSRF0805JT12L0 | 0805 | 12 mΩ | 5 | 0.5 | 50 | Standard | |
| CSRF0805JT13L0 | 0805 | 13 mΩ | 5 | 0.5 | 50 | Standard | |
| CSRF0805JT15L0 | 0805 | 15 mΩ | 5 | 0.5 | 50 | Standard | |
| CSRF0805JT16L0 | 0805 | 16 mΩ | 5 | 0.5 | 50 | Standard | |
| CSRF0805JT18L0 | 0805 | 18 mΩ | 5 | 0.5 | 50 | Standard | |
| CSRF0805JT20L0 | 0805 | 20 mΩ | 5 | 0.5 | 50 | Standard | |
| CSRF0805JT22L0 | 0805 | 22 mΩ | 5 | 0.5 | 50 | Standard | |
| CSRF0805JT24L0 | 0805 | 24 mΩ | 5 | 0.5 | 50 | Standard | |
| CSRF0805JT25L0 | 0805 | 25 mΩ | 5 | 0.5 | 50 | Standard | |
| CSRF0805JT27L0 | 0805 | 27 mΩ | 5 | 0.5 | 50 | Standard | |
| CSRF0805JT30L0 | 0805 | 30 mΩ | 5 | 0.5 | 50 | Standard | |
| CSRF1206FT10L0 | 1206 | 10 mΩ | 1 | 1 | 100 | Standard | |
| CSRF1206FT11L0 | 1206 | 11 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT12L0 | 1206 | 12 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT13L0 | 1206 | 13 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT14L0 | 1206 | 14 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT15L0 | 1206 | 15 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT16L0 | 1206 | 16 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT18L0 | 1206 | 18 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT20L0 | 1206 | 20 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT22L0 | 1206 | 22 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT24L0 | 1206 | 24 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT25L0 | 1206 | 25 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT27L0 | 1206 | 27 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT30L0 | 1206 | 30 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT33L0 | 1206 | 33 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT36L0 | 1206 | 36 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT39L0 | 1206 | 39 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT40L0 | 1206 | 40 mΩ | 1 | 1 | 50 | Standard | |
| CSRF1206FT5L00 | 1206 | 5 mΩ | 1 | 1 | 100 | Standard | |
| CSRF1206FT6L00 | 1206 | 6 mΩ | 1 | 1 | 100 | Standard | |
| CSRF1206FT7L00 | 1206 | 7 mΩ | 1 | 1 | 100 | Standard | |
| CSRF1206FT8L00 | 1206 | 8 mΩ | 1 | 1 | 100 | Standard | |
| CSRF1206FT9L00 | 1206 | 9 mΩ | 1 | 1 | 100 | Standard | |
| CSRF1206JT10L0 | 1206 | 10 mΩ | 5 | 1 | 100 | Standard | |
| CSRF1206JT11L0 | 1206 | 11 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT12L0 | 1206 | 12 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT13L0 | 1206 | 13 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT15L0 | 1206 | 15 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT16L0 | 1206 | 16 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT18L0 | 1206 | 18 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT20L0 | 1206 | 20 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT22L0 | 1206 | 22 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT24L0 | 1206 | 24 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT25L0 | 1206 | 25 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT27L0 | 1206 | 27 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT30L0 | 1206 | 30 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT33L0 | 1206 | 33 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT36L0 | 1206 | 36 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT39L0 | 1206 | 39 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT40L0 | 1206 | 40 mΩ | 5 | 1 | 50 | Standard | |
| CSRF1206JT5L00 | 1206 | 5 mΩ | 5 | 1 | 100 | Standard | |
| CSRF1206JT6L00 | 1206 | 6 mΩ | 5 | 1 | 100 | Standard | |
| CSRF1206JT7L00 | 1206 | 7 mΩ | 5 | 1 | 100 | Standard | |
| CSRF1206JT8L00 | 1206 | 8 mΩ | 5 | 1 | 100 | Standard | |
| CSRF1206JT9L00 | 1206 | 9 mΩ | 5 | 1 | 100 | Standard | |
| CSRF1225FT10L0 | 1225 | 10 mΩ | 1 | 3 | Standard | ||
| CSRF1225FT1L00 | 1225 | 1 mΩ | 1 | 3 | Standard | ||
| CSRF1225FT2L00 | 1225 | 2 mΩ | 1 | 3 | Standard | ||
| CSRF1225FT3L00 | 1225 | 3 mΩ | 1 | 3 | Standard | ||
| CSRF1225FT5L00 | 1225 | 5 mΩ | 1 | 3 | Standard | ||
| CSRF2010FT10L0 | 2010 | 10 mΩ | 1 | 1 | 50 | Standard | |
| CSRF2010FT3L00 | 2010 | 3 mΩ | 1 | 1 | 100 | Standard | |
| CSRF2010FT50L0 | 2010 | 50 mΩ | 1 | 1 | 50 | Standard | |
| CSRF2010FT5L00 | 2010 | 5 mΩ | 1 | 1 | 100 | Standard | |
| CSRF2010FT6L00 | 2010 | 6 mΩ | 1 | 1 | 100 | Standard | |
| CSRF2010FT7L00 | 2010 | 7 mΩ | 1 | 1 | 100 | Standard | |
| CSRF2010FT8L00 | 2010 | 8 mΩ | 1 | 1 | 100 | Standard | |
| CSRF2010FT9L00 | 2010 | 9 mΩ | 1 | 1 | 100 | Standard | |
| CSRF2010FTR100 | 2010 | 100 mΩ | 1 | 1 | 50 | Standard | |
| CSRF2010JG5L00 | 2010 | 5 mΩ | 5 | 1 | 100 | Standard | |
| CSRF2010JT10L0 | 2010 | 10 mΩ | 5 | 1 | 50 | Standard | |
| CSRF2010JT3L00 | 2010 | 3 mΩ | 5 | 1 | 100 | Standard | |
| CSRF2010JT5L00 | 2010 | 5 mΩ | 5 | 1 | 100 | Standard | |
| CSRF2010JT6L00 | 2010 | 6 mΩ | 5 | 1 | 100 | Standard | |
| CSRF2010JT7L00 | 2010 | 7 mΩ | 5 | 1 | 100 | Standard | |
| CSRF2010JT8L00 | 2010 | 8 mΩ | 5 | 1 | 100 | Standard | |
| CSRF2512FT10L0 | 2512 | 10 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT11L0 | 2512 | 11 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT12L0 | 2512 | 12 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT13L0 | 2512 | 13 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT15L0 | 2512 | 15 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT16L0 | 2512 | 16 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT18L0 | 2512 | 18 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT20L0 | 2512 | 20 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT22L0 | 2512 | 22 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT24L0 | 2512 | 24 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT25L0 | 2512 | 25 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT27L0 | 2512 | 27 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT30L0 | 2512 | 30 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT33L0 | 2512 | 33 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT35L0 | 2512 | 35 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT36L0 | 2512 | 36 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT39L0 | 2512 | 39 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT3L00 | 2512 | 3 mΩ | 1 | 2 | 100 | Standard | |
| CSRF2512FT40L0 | 2512 | 40 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT43L0 | 2512 | 43 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT47L0 | 2512 | 47 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT4L00 | 2512 | 4 mΩ | 1 | 2 | 100 | Standard | |
| CSRF2512FT50L0 | 2512 | 50 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT51L0 | 2512 | 51 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT56L0 | 2512 | 56 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT5L00 | 2512 | 5 mΩ | 1 | 2 | 100 | Standard | |
| CSRF2512FT60L0 | 2512 | 60 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT62L0 | 2512 | 62 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT68L0 | 2512 | 68 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT6L00 | 2512 | 6 mΩ | 1 | 2 | 100 | Standard | |
| CSRF2512FT75L0 | 2512 | 75 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT7L00 | 2512 | 7 mΩ | 1 | 2 | 100 | Standard | |
| CSRF2512FT80L0 | 2512 | 80 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT82L0 | 2512 | 82 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT8L00 | 2512 | 8 mΩ | 1 | 2 | 100 | Standard | |
| CSRF2512FT91L0 | 2512 | 91 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FT9L00 | 2512 | 9 mΩ | 1 | 2 | 100 | Standard | |
| CSRF2512FTR100 | 2512 | 100 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FTR200 | 2512 | 200 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512FTR220 | 2512 | 220 mΩ | 1 | 2 | 50 | Standard | |
| CSRF2512JT10L0 | 2512 | 10 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT11L0 | 2512 | 11 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT12L0 | 2512 | 12 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT13L0 | 2512 | 13 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT15L0 | 2512 | 15 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT16L0 | 2512 | 16 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT18L0 | 2512 | 18 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT20L0 | 2512 | 20 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT22L0 | 2512 | 22 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT24L0 | 2512 | 24 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT25L0 | 2512 | 25 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT27L0 | 2512 | 27 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT30L0 | 2512 | 30 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT33L0 | 2512 | 33 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT36L0 | 2512 | 36 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT39L0 | 2512 | 39 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT3L00 | 2512 | 3 mΩ | 5 | 2 | 100 | Standard | |
| CSRF2512JT40L0 | 2512 | 40 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT43L0 | 2512 | 43 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT47L0 | 2512 | 47 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT4L00 | 2512 | 4 mΩ | 5 | 2 | 100 | Standard | |
| CSRF2512JT50L0 | 2512 | 50 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT51L0 | 2512 | 51 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT56L0 | 2512 | 56 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT5L00 | 2512 | 5 mΩ | 5 | 2 | 100 | Standard | |
| CSRF2512JT60L0 | 2512 | 60 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT62L0 | 2512 | 62 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT68L0 | 2512 | 68 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT6L00 | 2512 | 6 mΩ | 5 | 2 | 100 | Standard | |
| CSRF2512JT75L0 | 2512 | 75 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT7L00 | 2512 | 7 mΩ | 5 | 2 | 100 | Standard | |
| CSRF2512JT80L0 | 2512 | 80 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT82L0 | 2512 | 82 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT8L00 | 2512 | 8 mΩ | 5 | 2 | 100 | Standard | |
| CSRF2512JT91L0 | 2512 | 91 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2512JT9L00 | 2512 | 9 mΩ | 5 | 2 | 100 | Standard | |
| CSRF2512JTR100 | 2512 | 100 mΩ | 5 | 2 | 50 | Standard | |
| CSRF2817FT10L0 | 2817 | 10 mΩ | 1 | 5 | 50 | Standard | |
| CSRF2817FT15L0 | 2817 | 15 mΩ | 1 | 5 | 50 | Standard | |
| CSRF2817FT20L0 | 2817 | 20 mΩ | 1 | 5 | 50 | Standard | |
| CSRF2817FT33L0 | 2817 | 33 mΩ | 1 | 4 | 50 | Standard | |
| CSRF2817FT5L00 | 2817 | 5 mΩ | 1 | 5 | 50 | Standard | |
| CSRF4320FT10L0 | 4320 | 10 mΩ | 1 | 5 | 50 | Standard | |
| CSRF4320FT20L0 | 4320 | 20 mΩ | 1 | 5 | 50 | Standard | |
| CSRF4320FT30L0 | 4320 | 30 mΩ | 1 | 5 | 50 | Standard | |
| CSRF4320FT5L00 | 4320 | 5 mΩ | 1 | 5 | Standard |
