Stackpole FCR Trimmable Thick Film Chip Resistors

Stackpole FCR thick film chip resistors can be trimmed in circuit using a YAG laser. These surface mount parts offer symmetric and one-sided pre-trim tolerance ranges. Standard parts within the published 10 Ω–1 MΩ range have a TCR of ±200 ppm/°C.

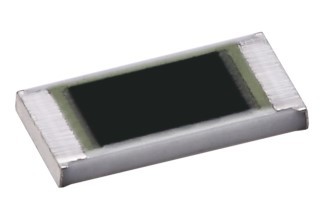

Stackpole FCR series resistors
Representative series image; actual appearance varies by part.

Download the FCR series datasheet (PDF)

Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.

78 Stackpole FCR parts
Part NumberCase SizeResistancePre-trim Tolerance (%)Power at 70 °C (W)Max Working Voltage (V)Datasheet
Part NumberCase SizeResistancePre-trim Tolerance (%)Power at 70 °C (W)Max Working Voltage (V)Datasheet
FCR0402MT2R4004022.4 Ω±200.06350PDF
FCR0603KT10K0060310 kΩ±100.150PDF
FCR0603KT10R0060310 Ω±100.150PDF
FCR0603KT68R0060368 Ω±100.150PDF
FCR0603MT100R0603100 Ω±200.150PDF
FCR0603MT10K0060310 kΩ±200.150PDF
FCR0603MT150R0603150 Ω±200.150PDF
FCR0603MT68R0060368 Ω±200.150PDF
FCR0805KT10K0080510 kΩ±100.125100PDF
FCR0805KT470R0805470 Ω±100.125100PDF
FCR0805MT100R0805100 Ω±200.125100PDF
FCR0805NT27K0080527 kΩ±300.125100PDF
FCR1206JT4K7012064.7 kΩ0.25200PDF
FCR1206KT100R1206100 Ω±100.25200PDF
FCR1206KT120R1206120 Ω±100.25200PDF
FCR1206KT180R1206180 Ω±100.25200PDF
FCR1206KT1K0012061 kΩ±100.25200PDF
FCR1206KT1K5012061.5 kΩ±100.25200PDF
FCR1206KT240K1206240 kΩ±100.25200PDF
FCR1206KT2K2012062.2 kΩ±100.25200PDF
FCR1206KT390R1206390 Ω±100.25200PDF
FCR1206KT470R1206470 Ω±100.25200PDF
FCR1206KT4M7012064.7 MΩ±100.25200PDF
FCR1206KT560K1206560 kΩ±100.25200PDF
FCR1206KT5M1012065.1 MΩ±100.25200PDF
FCR1206KT620K1206620 kΩ±100.25200PDF
FCR1206LT100R1206100 Ω±150.25200PDF
FCR1206LT10K0120610 kΩ±150.25200PDF
FCR1206LT200R1206200 Ω±150.25200PDF
FCR1206LT240K1206240 kΩ±150.25200PDF
FCR1206LT240R1206240 Ω±150.25200PDF
FCR1206LT330K1206330 kΩ±150.25200PDF
FCR1206LT470R1206470 Ω±150.25200PDF
FCR1206LT5K6012065.6 kΩ±150.25200PDF
FCR1206LT75K0120675 kΩ±150.25200PDF
FCR1206LT8K2012068.2 kΩ±150.25200PDF
FCR1206MT100R1206100 Ω±200.25200PDF
FCR1206MT22K0120622 kΩ±200.25200PDF
FCR1206MT240K1206240 kΩ±200.25200PDF
FCR1206MT2K2012062.2 kΩ±200.25200PDF
FCR1206MT300R1206300 Ω±200.25200PDF
FCR1206MT4K7012064.7 kΩ±200.25200PDF
FCR1206MT560R1206560 Ω±200.25200PDF
FCR1206NT11K0120611 kΩ±300.25200PDF
FCR1206NT15K0120615 kΩ±300.25200PDF
FCR1206NT16K0120616 kΩ±300.25200PDF
FCR1206NT18K0120618 kΩ±300.25200PDF
FCR1206NT22K0120622 kΩ±300.25200PDF
FCR1206NT39K0120639 kΩ±300.25200PDF
FCR1206NT43K0120643 kΩ±300.25200PDF
FCR1206NT47K0120647 kΩ±300.25200PDF
FCR1206NT5K1012065.1 kΩ±300.25200PDF
FCR1206NT7K5012067.5 kΩ±300.25200PDF
FCR1206NT82K0120682 kΩ±300.25200PDF
FCR1206NT9K1012069.1 kΩ±300.25200PDF
FCR1206WT9K1012069.1 kΩ−30 to 00.25200PDF
FCR1210KT100R1210100 Ω±100.33200PDF
FCR1210KT10K0121010 kΩ±100.33200PDF
FCR1210KT10R0121010 Ω±100.33200PDF
FCR1210KT18K0121018 kΩ±100.33200PDF
FCR1210KT1K0012101 kΩ±100.33200PDF
FCR1210KT1K5012101.5 kΩ±100.33200PDF
FCR1210KT2K2012102.2 kΩ±100.33200PDF
FCR1210KT5K6012105.6 kΩ±100.33200PDF
FCR1210LT10K0121010 kΩ±150.33200PDF
FCR1210LT15K0121015 kΩ±150.33200PDF
FCR1210LT33K0121033 kΩ±150.33200PDF
FCR1210LT4K7012104.7 kΩ±150.33200PDF
FCR1210LT5K6012105.6 kΩ±150.33200PDF
FCR1210MT5K6012105.6 kΩ±200.33200PDF
FCR1210MT680R1210680 Ω±200.33200PDF
FCR1210NT47R0121047 Ω±300.33200PDF
FCR1210UT1K5012101.5 kΩ−10 to 00.33200PDF
FCR2010KT15R0201015 Ω±100.75200PDF
FCR2010KT33R0201033 Ω±100.75200PDF
FCR2010KT680R2010680 Ω±100.75200PDF
FCR2512KT10R0251210 Ω±101200PDF
FCR2512KT47R0251247 Ω±101200PDF

Tolerance ranges describe the part before trimming. For example, −30 to 0% is a one-sided range, not ±30%. Unverified tolerance codes remain blank. Parts outside the published resistance range retain their encoded values; confirm availability and specifications with Stackpole. Power is rated at 70 °C, and working voltage is limited by both the listed maximum and power/resistance.
