Stackpole FRN Fusing Metal Film Resistors

Stackpole FRN fusing metal film resistors provide overload protection in an axial leaded, through-hole package. All listed parts have ±5% resistance tolerance. Standard parts have a temperature coefficient of ±350 ppm/°C and a coating meeting UL 94V-0. Compare resistance, power, and maximum working voltage below.

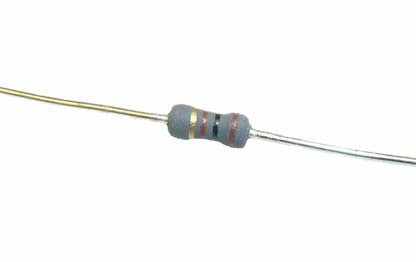

Stackpole FRN series resistors
Representative series image; actual appearance varies by part.

Download the FRN series datasheet (PDF)

Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.

271 Stackpole FRN parts
Part NumberResistancePower at 70 °C (W)Max Working Voltage (V)Datasheet
Part NumberResistancePower at 70 °C (W)Max Working Voltage (V)Datasheet
FRN12JA100R100 Ω0.5250PDF
FRN12JA10R010 Ω0.5250PDF
FRN12JA220R220 Ω0.5250PDF
FRN12JA270R270 Ω0.5250PDF
FRN12JA27R027 Ω0.5250PDF
FRN12JA560R560 Ω0.5250PDF
FRN12JA5R605.6 Ω0.5250PDF
FRN12JB100R100 Ω0.5250PDF
FRN12JB10R010 Ω0.5250PDF
FRN12JB18R018 Ω0.5250PDF
FRN12JB1R001 Ω0.5250PDF
FRN12JB20R020 Ω0.5250PDF
FRN12JB27R027 Ω0.5250PDF
FRN12JB2R202.2 Ω0.5250PDF
FRN12JB4R704.7 Ω0.5250PDF
FRN12JB5R605.6 Ω0.5250PDF
FRN12JT100R100 Ω0.5250PDF
FRN12JT10K010 kΩ0.5250PDF
FRN12JT10R010 Ω0.5250PDF
FRN12JT110R110 Ω0.5250PDF
FRN12JT11R011 Ω0.5250PDF
FRN12JT120R120 Ω0.5250PDF
FRN12JT12R012 Ω0.5250PDF
FRN12JT130R130 Ω0.5250PDF
FRN12JT13R013 Ω0.5250PDF
FRN12JT150R150 Ω0.5250PDF
FRN12JT15R015 Ω0.5250PDF
FRN12JT160R160 Ω0.5250PDF
FRN12JT16R016 Ω0.5250PDF
FRN12JT180R180 Ω0.5250PDF
FRN12JT18R018 Ω0.5250PDF
FRN12JT1K001 kΩ0.5250PDF
FRN12JT1K101.1 kΩ0.5250PDF
FRN12JT1K201.2 kΩ0.5250PDF
FRN12JT1K301.3 kΩ0.5250PDF
FRN12JT1K501.5 kΩ0.5250PDF
FRN12JT1K601.6 kΩ0.5250PDF
FRN12JT1K801.8 kΩ0.5250PDF
FRN12JT1R001 Ω0.5250PDF
FRN12JT1R101.1 Ω0.5250PDF
FRN12JT1R201.2 Ω0.5250PDF
FRN12JT1R301.3 Ω0.5250PDF
FRN12JT1R501.5 Ω0.5250PDF
FRN12JT1R601.6 Ω0.5250PDF
FRN12JT1R801.8 Ω0.5250PDF
FRN12JT200R200 Ω0.5250PDF
FRN12JT20R020 Ω0.5250PDF
FRN12JT220R220 Ω0.5250PDF
FRN12JT22R022 Ω0.5250PDF
FRN12JT240R240 Ω0.5250PDF
FRN12JT24R024 Ω0.5250PDF
FRN12JT270R270 Ω0.5250PDF
FRN12JT27R027 Ω0.5250PDF
FRN12JT2K002 kΩ0.5250PDF
FRN12JT2K202.2 kΩ0.5250PDF
FRN12JT2K402.4 kΩ0.5250PDF
FRN12JT2K702.7 kΩ0.5250PDF
FRN12JT2R002 Ω0.5250PDF
FRN12JT2R202.2 Ω0.5250PDF
FRN12JT2R402.4 Ω0.5250PDF
FRN12JT2R702.7 Ω0.5250PDF
FRN12JT300R300 Ω0.5250PDF
FRN12JT30R030 Ω0.5250PDF
FRN12JT330R330 Ω0.5250PDF
FRN12JT33R033 Ω0.5250PDF
FRN12JT360R360 Ω0.5250PDF
FRN12JT36R036 Ω0.5250PDF
FRN12JT390R390 Ω0.5250PDF
FRN12JT39R039 Ω0.5250PDF
FRN12JT3K003 kΩ0.5250PDF
FRN12JT3K303.3 kΩ0.5250PDF
FRN12JT3K603.6 kΩ0.5250PDF
FRN12JT3K903.9 kΩ0.5250PDF
FRN12JT3R003 Ω0.5250PDF
FRN12JT3R303.3 Ω0.5250PDF
FRN12JT3R603.6 Ω0.5250PDF
FRN12JT3R903.9 Ω0.5250PDF
FRN12JT430R430 Ω0.5250PDF
FRN12JT43R043 Ω0.5250PDF
FRN12JT470R470 Ω0.5250PDF
FRN12JT47R047 Ω0.5250PDF
FRN12JT4K304.3 kΩ0.5250PDF
FRN12JT4K704.7 kΩ0.5250PDF
FRN12JT4R304.3 Ω0.5250PDF
FRN12JT4R704.7 Ω0.5250PDF
FRN12JT510R510 Ω0.5250PDF
FRN12JT51R051 Ω0.5250PDF
FRN12JT560R560 Ω0.5250PDF
FRN12JT56R056 Ω0.5250PDF
FRN12JT5K105.1 kΩ0.5250PDF
FRN12JT5K605.6 kΩ0.5250PDF
FRN12JT5R005 Ω0.5250PDF
FRN12JT5R105.1 Ω0.5250PDF
FRN12JT5R605.6 Ω0.5250PDF
FRN12JT620R620 Ω0.5250PDF
FRN12JT62R062 Ω0.5250PDF
FRN12JT680R680 Ω0.5250PDF
FRN12JT68R068 Ω0.5250PDF
FRN12JT6K206.2 kΩ0.5250PDF
FRN12JT6K806.8 kΩ0.5250PDF
FRN12JT6R206.2 Ω0.5250PDF
FRN12JT6R806.8 Ω0.5250PDF
FRN12JT750R750 Ω0.5250PDF
FRN12JT75R075 Ω0.5250PDF
FRN12JT7K507.5 kΩ0.5250PDF
FRN12JT7R507.5 Ω0.5250PDF
FRN12JT820R820 Ω0.5250PDF
FRN12JT82R082 Ω0.5250PDF
FRN12JT8K208.2 kΩ0.5250PDF
FRN12JT8R208.2 Ω0.5250PDF
FRN12JT910R910 Ω0.5250PDF
FRN12JT91R091 Ω0.5250PDF
FRN12JT9K109.1 kΩ0.5250PDF
FRN12JT9R109.1 Ω0.5250PDF
FRN12JTR820820 mΩ0.5250PDF
FRN14JA5R605.6 Ω0.25200PDF
FRN14JB100R100 Ω0.25200PDF
FRN14JB10R010 Ω0.25200PDF
FRN14JB1K001 kΩ0.25200PDF
FRN14JB1R301.3 Ω0.25200PDF
FRN14JB22R022 Ω0.25200PDF
FRN14JB2R002 Ω0.25200PDF
FRN14JB33R033 Ω0.25200PDF
FRN14JB3K303.3 kΩ0.25200PDF
FRN14JB47R047 Ω0.25200PDF
FRN14JB560R560 Ω0.25200PDF
FRN14JBR220220 mΩ0.25200PDF
FRN14JBR330330 mΩ0.25200PDF
FRN14JBR510510 mΩ0.25200PDF
FRN14JBT220R220 ΩPDF
FRN14JT100R100 Ω0.25200PDF
FRN14JT10K010 kΩ0.25200PDF
FRN14JT10R010 Ω0.25200PDF
FRN14JT110R110 Ω0.25200PDF
FRN14JT11R011 Ω0.25200PDF
FRN14JT120R120 Ω0.25200PDF
FRN14JT12R012 Ω0.25200PDF
FRN14JT130R130 Ω0.25200PDF
FRN14JT13R013 Ω0.25200PDF
FRN14JT150R150 Ω0.25200PDF
FRN14JT15R015 Ω0.25200PDF
FRN14JT160R160 Ω0.25200PDF
FRN14JT16R016 Ω0.25200PDF
FRN14JT180R180 Ω0.25200PDF
FRN14JT18R018 Ω0.25200PDF
FRN14JT1K001 kΩ0.25200PDF
FRN14JT1K101.1 kΩ0.25200PDF
FRN14JT1K201.2 kΩ0.25200PDF
FRN14JT1K301.3 kΩ0.25200PDF
FRN14JT1K501.5 kΩ0.25200PDF
FRN14JT1K601.6 kΩ0.25200PDF
FRN14JT1K801.8 kΩ0.25200PDF
FRN14JT1R001 Ω0.25200PDF
FRN14JT1R101.1 Ω0.25200PDF
FRN14JT1R201.2 Ω0.25200PDF
FRN14JT1R301.3 Ω0.25200PDF
FRN14JT1R501.5 Ω0.25200PDF
FRN14JT1R601.6 Ω0.25200PDF
FRN14JT1R801.8 Ω0.25200PDF
FRN14JT200R200 Ω0.25200PDF
FRN14JT20R020 Ω0.25200PDF
FRN14JT220R220 Ω0.25200PDF
FRN14JT22R022 Ω0.25200PDF
FRN14JT240R240 Ω0.25200PDF
FRN14JT24R024 Ω0.25200PDF
FRN14JT270R270 Ω0.25200PDF
FRN14JT27R027 Ω0.25200PDF
FRN14JT2K002 kΩ0.25200PDF
FRN14JT2K202.2 kΩ0.25200PDF
FRN14JT2K402.4 kΩ0.25200PDF
FRN14JT2K702.7 kΩ0.25200PDF
FRN14JT2R002 Ω0.25200PDF
FRN14JT2R202.2 Ω0.25200PDF
FRN14JT2R402.4 Ω0.25200PDF
FRN14JT2R702.7 Ω0.25200PDF
FRN14JT300R300 Ω0.25200PDF
FRN14JT30R030 Ω0.25200PDF
FRN14JT330R330 Ω0.25200PDF
FRN14JT33R033 Ω0.25200PDF
FRN14JT360R360 Ω0.25200PDF
FRN14JT36R036 Ω0.25200PDF
FRN14JT390R390 Ω0.25200PDF
FRN14JT39R039 Ω0.25200PDF
FRN14JT3K003 kΩ0.25200PDF
FRN14JT3K303.3 kΩ0.25200PDF
FRN14JT3K603.6 kΩ0.25200PDF
FRN14JT3K903.9 kΩ0.25200PDF
FRN14JT3R003 Ω0.25200PDF
FRN14JT3R303.3 Ω0.25200PDF
FRN14JT3R603.6 Ω0.25200PDF
FRN14JT3R903.9 Ω0.25200PDF
FRN14JT430R430 Ω0.25200PDF
FRN14JT43R043 Ω0.25200PDF
FRN14JT470R470 Ω0.25200PDF
FRN14JT47R047 Ω0.25200PDF
FRN14JT4K304.3 kΩ0.25200PDF
FRN14JT4K704.7 kΩ0.25200PDF
FRN14JT4R304.3 Ω0.25200PDF
FRN14JT4R704.7 Ω0.25200PDF
FRN14JT510R510 Ω0.25200PDF
FRN14JT51R051 Ω0.25200PDF
FRN14JT560R560 Ω0.25200PDF
FRN14JT56R056 Ω0.25200PDF
FRN14JT5K105.1 kΩ0.25200PDF
FRN14JT5K605.6 kΩ0.25200PDF
FRN14JT5R105.1 Ω0.25200PDF
FRN14JT5R605.6 Ω0.25200PDF
FRN14JT620R620 Ω0.25200PDF
FRN14JT62R062 Ω0.25200PDF
FRN14JT680R680 Ω0.25200PDF
FRN14JT68R068 Ω0.25200PDF
FRN14JT6K206.2 kΩ0.25200PDF
FRN14JT6K806.8 kΩ0.25200PDF
FRN14JT6R206.2 Ω0.25200PDF
FRN14JT6R806.8 Ω0.25200PDF
FRN14JT750R750 Ω0.25200PDF
FRN14JT75R075 Ω0.25200PDF
FRN14JT7K507.5 kΩ0.25200PDF
FRN14JT7R507.5 Ω0.25200PDF
FRN14JT820R820 Ω0.25200PDF
FRN14JT82R082 Ω0.25200PDF
FRN14JT8K208.2 kΩ0.25200PDF
FRN14JT8R208.2 Ω0.25200PDF
FRN14JT910R910 Ω0.25200PDF
FRN14JT91R091 Ω0.25200PDF
FRN14JT9K109.1 kΩ0.25200PDF
FRN14JT9R109.1 Ω0.25200PDF
FRN14JTR220220 mΩ0.25200PDF
FRN1JA560R560 Ω1300PDF
FRN1JB150R150 Ω1300PDF
FRN1JB2R202.2 Ω1300PDF
FRN1JT100R100 Ω1300PDF
FRN1JT10R010 Ω1300PDF
FRN1JT15R015 Ω1300PDF
FRN1JT1K301.3 kΩ1300PDF
FRN1JT1R001 Ω1300PDF
FRN1JT1R601.6 Ω1300PDF
FRN1JT1R801.8 Ω1300PDF
FRN1JT22R022 Ω1300PDF
FRN1JT27R027 Ω1300PDF
FRN1JT2R202.2 Ω1300PDF
FRN1JT33R033 Ω1300PDF
FRN1JT4R704.7 Ω1300PDF
FRN1JT510R510 Ω1300PDF
FRN1JT51R051 Ω1300PDF
FRN1JT560R560 Ω1300PDF
FRN1JT5R105.1 Ω1300PDF
FRN1JT7R507.5 Ω1300PDF
FRN1JT8R208.2 Ω1300PDF
FRN2JA1K001 kΩ2300PDF
FRN2JB100R100 Ω2300PDF
FRN2JB10R010 Ω2300PDF
FRN2JB150R150 Ω2300PDF
FRN2JB22R022 Ω2300PDF
FRN2JB27R027 Ω2300PDF
FRN2JB43R043 Ω2300PDF
FRN2JB500R500 Ω2300PDF
FRN2JT10R010 Ω2300PDF
FRN2JT1K301.3 kΩ2300PDF
FRN2JT1K601.6 kΩ2300PDF
FRN2JT1R001 Ω2300PDF
FRN2JT1R801.8 Ω2300PDF
FRN2JT2R202.2 Ω2300PDF
FRN2JT2R702.7 Ω2300PDF
FRN2JT33R033 Ω2300PDF
FRN2JT36R036 Ω2300PDF
FRN2JT43R043 Ω2300PDF
FRN2JT47R047 Ω2300PDF
FRN2JT680R680 Ω2300PDF
FRN2JT6R806.8 Ω2300PDF
FRN2JT8R208.2 Ω2300PDF

Power ratings apply at 70 °C. Actual working voltage is limited to the lower of the listed maximum and the square root of power multiplied by resistance. Consult the datasheet fusing characteristics to select a part for the required overload condition. FRN14JBT220R has a nonstandard ordering string: the 220 Ω resistance is decoded, while unverified power, voltage, and TCR remain blank.
