Stackpole HCJ High Current Jumper Chip Resistors

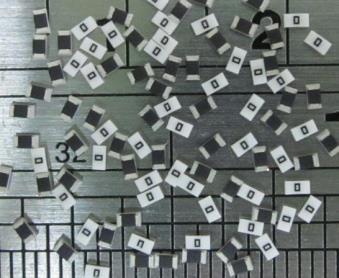

Stackpole HCJ surface-mount jumper chip resistors provide nominal zero-ohm connections in seven case sizes, from 0201 through 2512. Compare current ratings from 5.8 A to 70.7 A and maximum resistance values from 0.2 to 3 mΩ to select a jumper for your board layout and current requirements.
All HCJ sizes share an operating temperature range of −55 to +155 °C. Case size, power rating, current rating, and maximum resistance vary by part. Use the filters below to compare these differences, search an exact part number, or open its NAC Semi listing.
Download the HCJ series datasheet (PDF)
| Part Number | Case Size | Power at 70 °C (W) | Current Rating (A) | Max Overload (A) | Max Resistance (mΩ) | Datasheet |
|---|---|---|---|---|---|---|
| Part Number | Case Size | Power at 70 °C (W) | Current Rating (A) | Max Overload (A) | Max Resistance (mΩ) | Datasheet |
| HCJ0201ZT0R00 | 0201 | 0.1 | 5.8 | 14.5 | 3 | |
| HCJ0402ZT0R00 | 0402 | 0.125 | 6.5 | 16.2 | 3 | |
| HCJ0603ZT0R00 | 0603 | 0.25 | 22.4 | 56 | 0.5 | |
| HCJ0805ZT0R00 | 0805 | 0.5 | 31.6 | 79 | 0.5 | |
| HCJ1206ZT0R00 | 1206 | 0.75 | 38.7 | 96.7 | 0.5 | |
| HCJ2010ZT0R00 | 2010 | 1 | 70.7 | 112 | 0.2 | |
| HCJ2512ZT0R00 | 2512 | 2 | 63.2 | 158 | 0.5 |
