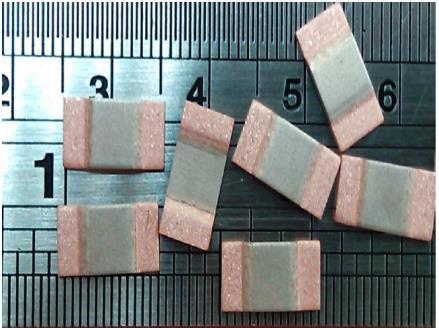

Stackpole HCS High Current Metal Element Shunt Resistors
Stackpole HCS surface-mount metal element shunt resistors support current sensing in power modules, frequency converters, and power management circuits. Compare the 1206, 2512, 3920, and 5930 case sizes by resistance, tolerance, power, and temperature coefficient.
Download the HCS series datasheet (PDF)
Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.
| Part Number | Case Size | Resistance (mΩ) | Tolerance (±%) | Power at 100 °C (W) | TCR (±ppm/°C) | Datasheet |
|---|---|---|---|---|---|---|
| Part Number | Case Size | Resistance (mΩ) | Tolerance (±%) | Power at 100 °C (W) | TCR (±ppm/°C) | Datasheet |
| HCS1206FT1L00 | 1206 | 1 | 1 | 2 | 150 | |
| HCS1206FTL300 | 1206 | 0.3 | 1 | 2 | 300 | |
| HCS1206FTL500 | 1206 | 0.5 | 1 | 2 | 200 | |
| HCS2512FT1L00 | 2512 | 1 | 1 | 3 | 100 | |
| HCS2512FT2L00 | 2512 | 2 | 1 | 3 | 50 | |
| HCS2512FT3L00 | 2512 | 3 | 1 | 2 | 50 | |
| HCS2512FT5L00 | 2512 | 5 | 1 | 1.5 | 50 | |
| HCS2512FTL250 | 2512 | 0.25 | 1 | |||
| HCS2512FTL290 | 2512 | 0.29 | 1 | |||
| HCS2512FTL300 | 2512 | 0.3 | 1 | 3 | 150 | |
| HCS2512FTL400 | 2512 | 0.4 | 1 | |||
| HCS2512FTL500 | 2512 | 0.5 | 1 | 3 | 115 | |
| HCS2512JT1L00 | 2512 | 1 | 5 | 3 | 100 | |
| HCS2512JT2L00 | 2512 | 2 | 5 | 3 | 50 | |
| HCS3920FT1L00 | 3920 | 1 | 1 | 5 | 50 | |
| HCS3920FT3L00 | 3920 | 3 | 1 | 3 | 50 | |
| HCS3920FT4L00 | 3920 | 4 | 1 | 2.5 | 50 | |
| HCS3920FT5L00 | 3920 | 5 | 1 | 2 | 50 | |
| HCS3920FTL200 | 3920 | 0.2 | 1 | 5 | 200 | |
| HCS3920FTL300 | 3920 | 0.3 | 1 | 5 | 150 | |
| HCS3920FTL500 | 3920 | 0.5 | 1 | 5 | 70 | |
| HCS3920FTL700 | 3920 | 0.7 | 1 | |||
| HCS3920JT3L00 | 3920 | 3 | 5 | 3 | 50 | |
| HCS5930FT1L00 | 5930 | 1 | 1 | 6 | 50 | |
| HCS5930FTL100 | 5930 | 0.1 | 1 | 10 | 300 | |
| HCS5930FTL200 | 5930 | 0.2 | 1 | 10 | 100 | |
| HCS5930FTL300 | 5930 | 0.3 | 1 | 7 | 100 | |
| HCS5930FTL500 | 5930 | 0.5 | 1 | 6 | 75 | |
| HCS5930JT1L00 | 5930 | 1 | 5 | 6 | 50 | |
| HCS5930JTL200 | 5930 | 0.2 | 5 | 10 | 100 | |
| HCS5930JTL300 | 5930 | 0.3 | 5 | 7 | 100 | |
| HCS5930JTL500 | 5930 | 0.5 | 5 | 6 | 75 |
