Stackpole HCSK Kelvin Termination Metal Alloy Shunt Resistors

Stackpole HCSK surface-mount metal alloy shunt resistors use Kelvin terminations for current sensing. Compare three case sizes, resistance values from 0.2 to 5 mΩ, and 1% or 5% tolerance options. The elevated resistive element helps reduce thermal stress on the circuit board.

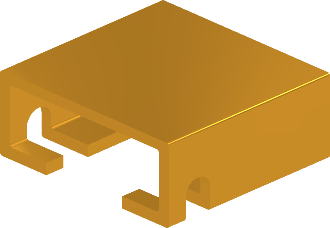

Stackpole HCSK series resistors
Representative series image; actual appearance varies by part.

Download the HCSK series datasheet (PDF)

Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.

38 Stackpole HCSK parts
Part NumberCase SizeResistance (mΩ)Tolerance (±%)Power at 70 °C (W)TCR (±ppm/°C)Datasheet
Part NumberCase SizeResistance (mΩ)Tolerance (±%)Power at 70 °C (W)TCR (±ppm/°C)Datasheet
HCSK1216FT1L00121611750PDF
HCSK1216FT2L00121621550PDF
HCSK1216FTL30012160.311075PDF
HCSK1216FTL50012160.51950PDF
HCSK1216JT1L00121615750PDF
HCSK1216JT2L00121625550PDF
HCSK1216JTL30012160.351075PDF
HCSK1216JTL50012160.55950PDF
HCSK2725FT1L00272511750PDF
HCSK2725FT2L00272521650PDF
HCSK2725FT3L00272531550PDF
HCSK2725FT4L00272541450PDF
HCSK2725FT5L00272551350PDF
HCSK2725FTL20027250.2112110PDF
HCSK2725FTL30027250.3111110PDF
HCSK2725FTL50027250.51950PDF
HCSK2725FTL70027250.71850PDF
HCSK2725JT1L00272515750PDF
HCSK2725JT2L00272525650PDF
HCSK2725JT3L00272535550PDF
HCSK2725JT4L00272545450PDF
HCSK2725JT5L00272555350PDF
HCSK2725JTL20027250.2512110PDF
HCSK2725JTL30027250.3511110PDF
HCSK2725JTL50027250.55950PDF
HCSK2725JTL70027250.75850PDF
HCSK4026FT1L00402611750PDF
HCSK4026FT3L00402631550PDF
HCSK4026FTL20040260.2112110PDF
HCSK4026FTL30040260.3111110PDF
HCSK4026FTL50040260.51950PDF
HCSK4026FTL70040260.71850PDF
HCSK4026JT1L00402615750PDF
HCSK4026JT3L00402635550PDF
HCSK4026JTL20040260.2512110PDF
HCSK4026JTL30040260.3511110PDF
HCSK4026JTL50040260.55950PDF
HCSK4026JTL70040260.75850PDF

Recommended maximum power depends on the thermal conditions of the assembly. The table shows ratings at 70 °C; separate 100 °C ratings are available in the datasheet. Consult the datasheet for derating and recommended assembly details.
