Stackpole HDM Moisture Resistant Carbon Film Resistors

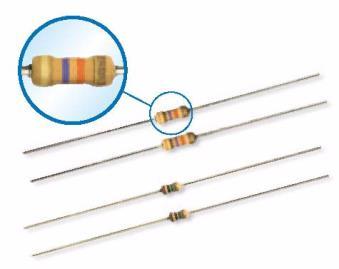

Stackpole HDM carbon film resistors use moisture resistant construction in a compact axial, through-hole package. Compare resistance, tolerance, power rating, working voltage limit, and temperature-coefficient range below.
Download the HDM series datasheet (PDF)
Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.
| Part Number | Resistance | Tolerance (±%) | Power at 70 °C (W) | Max Working Voltage (V) | TCR Range (ppm/°C) | Datasheet |
|---|---|---|---|---|---|---|
| Part Number | Resistance | Tolerance (±%) | Power at 70 °C (W) | Max Working Voltage (V) | TCR Range (ppm/°C) | Datasheet |
| HDM12FA10K0 | 10 kΩ | 1 | 0.5 | 350 | −500 to +350 | |
| HDM12FA1K00 | 1 kΩ | 1 | 0.5 | 350 | −500 to +350 | |
| HDM12FA1M00 | 1 MΩ | 1 | 0.5 | 350 | −1500 to 0 | |
| HDM12FA330R | 330 Ω | 1 | 0.5 | 350 | −500 to +350 | |
| HDM12FA470R | 470 Ω | 1 | 0.5 | 350 | −500 to +350 | |
| HDM12FA510R | 510 Ω | 1 | 0.5 | 350 | −500 to +350 | |
| HDM12FA82K0 | 82 kΩ | 1 | 0.5 | 350 | −500 to +350 | |
| HDM12FB510R | 510 Ω | 1 | 0.5 | 350 | −500 to +350 | |
| HDM12FT10R0 | 10 Ω | 1 | 0.5 | 350 | −500 to +350 | |
| HDM12FT150K | 150 kΩ | 1 | 0.5 | 350 | −700 to 0 | |
| HDM12FT768K | 768 kΩ | 1 | 0.5 | 350 | −700 to 0 | |
| HDM12FT768R | 768 Ω | 1 | 0.5 | 350 | −500 to +350 | |
| HDM12GA10K0 | 10 kΩ | 2 | 0.5 | 350 | −500 to +350 | |
| HDM12JA100K | 100 kΩ | 5 | 0.5 | 350 | −700 to 0 | |
| HDM12JA100R | 100 Ω | 5 | 0.5 | 350 | −500 to +350 | |
| HDM12JA10K0 | 10 kΩ | 5 | 0.5 | 350 | −500 to +350 | |
| HDM12JA10R0 | 10 Ω | 5 | 0.5 | 350 | −500 to +350 | |
| HDM12JA1K00 | 1 kΩ | 5 | 0.5 | 350 | −500 to +350 | |
| HDM12JT6K80 | 6.8 kΩ | 5 | 0.5 | 350 | −500 to +350 | |
| HDM14FA100K | 100 kΩ | 1 | 0.25 | 300 | −700 to 0 | |
| HDM14FA10K0 | 10 kΩ | 1 | 0.25 | 300 | −500 to +350 | |
| HDM14FA20K0 | 20 kΩ | 1 | 0.25 | 300 | −500 to +350 | |
| HDM14FB768R | 768 Ω | 1 | 0.25 | 300 | −500 to +350 | |
| HDM14GA10K0 | 10 kΩ | 2 | 0.25 | 300 | −500 to +350 | |
| HDM14GB43K0 | 43 kΩ | 2 | 0.25 | 300 | −500 to +350 | |
| HDM14JA100K | 100 kΩ | 5 | 0.25 | 300 | −700 to 0 | |
| HDM14JA100R | 100 Ω | 5 | 0.25 | 300 | −500 to +350 | |
| HDM14JA10K0 | 10 kΩ | 5 | 0.25 | 300 | −500 to +350 | |
| HDM14JA10R0 | 10 Ω | 5 | 0.25 | 300 | −500 to +350 | |
| HDM14JA1K00 | 1 kΩ | 5 | 0.25 | 300 | −500 to +350 | |
| HDM14JA2M00 | 2 MΩ | 5 | 0.25 | 300 | −1500 to 0 | |
| HDM14JT100K | 100 kΩ | 5 | 0.25 | 300 | −700 to 0 | |
| HDM14JT100R | 100 Ω | 5 | 0.25 | 300 | −500 to +350 | |
| HDM14JT10K0 | 10 kΩ | 5 | 0.25 | 300 | −500 to +350 | |
| HDM14JT160K | 160 kΩ | 5 | 0.25 | 300 | −700 to 0 | |
| HDM14JT1K00 | 1 kΩ | 5 | 0.25 | 300 | −500 to +350 | |
| HDM14JT1M00 | 1 MΩ | 5 | 0.25 | 300 | −1500 to 0 | |
| HDM14JT220K | 220 kΩ | 5 | 0.25 | 300 | −700 to 0 | |
| HDM14JT220R | 220 Ω | 5 | 0.25 | 300 | −500 to +350 | |
| HDM14JT22K0 | 22 kΩ | 5 | 0.25 | 300 | −500 to +350 | |
| HDM14JT2K20 | 2.2 kΩ | 5 | 0.25 | 300 | −500 to +350 | |
| HDM14JT2M00 | 2 MΩ | 5 | 0.25 | 300 | −1500 to 0 | |
| HDM14JT470K | 470 kΩ | 5 | 0.25 | 300 | −700 to 0 | |
| HDM14JT470R | 470 Ω | 5 | 0.25 | 300 | −500 to +350 | |
| HDM14JT47K0 | 47 kΩ | 5 | 0.25 | 300 | −500 to +350 | |
| HDM14JT4K70 | 4.7 kΩ | 5 | 0.25 | 300 | −500 to +350 |
