Stackpole HVR High Voltage Radial Leaded Plate Resistors

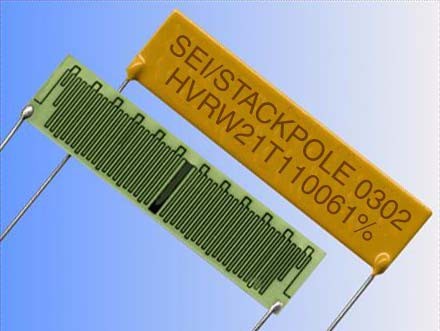

Stackpole HVR radial leaded plate resistors provide high resistance values and high voltage capability for through-hole mounting. All listed HVRW parts use matte tin leads. Compare resistance, tolerance, power rating, temperature coefficient, and maximum voltage across the available case styles.
Download the HVR series datasheet (PDF)
Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.
| Part Number | Resistance (MΩ) | Tolerance (±%) | Power at 25 °C (W) | TCR (±ppm/°C) | Maximum Voltage (kV) | Datasheet |
|---|---|---|---|---|---|---|
| Part Number | Resistance (MΩ) | Tolerance (±%) | Power at 25 °C (W) | TCR (±ppm/°C) | Maximum Voltage (kV) | Datasheet |
| HVRW21DE2M00 | 2 | 0.5 | 1 | 25 | 10 | |
| HVRW21DE5M00 | 5 | 0.5 | 1 | 25 | 10 | |
| HVRW21FC100K | 0.1 | 1 | 1 | 50 | 10 | |
| HVRW21FC100M | 100 | 1 | 1 | 50 | 10 | |
| HVRW21FC10G0 | 10000 | 1 | 1 | 50 | 10 | |
| HVRW21FC10M0 | 10 | 1 | 1 | 50 | 10 | |
| HVRW21FC1G00 | 1000 | 1 | 1 | 50 | 10 | |
| HVRW21FC1M00 | 1 | 1 | 1 | 50 | 10 | |
| HVRW21FD100M | 100 | 1 | 1 | 100 | 10 | |
| HVRW21FD57M6 | 57.6 | 1 | 1 | 100 | 10 | |
| HVRW21FE50M0 | 50 | 1 | 1 | 25 | 10 | |
| HVRW21FL100M | 100 | 1 | 1 | 200 | 10 | |
| HVRW21JC10M0 | 10 | 5 | 1 | 50 | 10 | |
| HVRW21JD10M0 | 10 | 5 | 1 | 100 | 10 | |
| HVRW39DC10M0 | 10 | 0.5 | 0.5 | 50 | 2 | |
| HVRW39DC1G00 | 1000 | 0.5 | 0.5 | 50 | 2 | |
| HVRW39DD1M00 | 1 | 0.5 | 0.5 | 100 | 2 | |
| HVRW39FC100K | 0.1 | 1 | 0.5 | 50 | 2 | |
| HVRW39FC100M | 100 | 1 | 0.5 | 50 | 2 | |
| HVRW39FC10M0 | 10 | 1 | 0.5 | 50 | 2 | |
| HVRW39FC1G00 | 1000 | 1 | 0.5 | 50 | 2 | |
| HVRW39FC1M00 | 1 | 1 | 0.5 | 50 | 2 | |
| HVRW39FD100K | 0.1 | 1 | 0.5 | 100 | 2 | |
| HVRW39FD100M | 100 | 1 | 0.5 | 100 | 2 | |
| HVRW39FD10G0 | 10000 | 1 | 0.5 | 100 | 2 | |
| HVRW39FD10M0 | 10 | 1 | 0.5 | 100 | 2 | |
| HVRW39FD1G00 | 1000 | 1 | 0.5 | 100 | 2 | |
| HVRW39FD1M00 | 1 | 1 | 0.5 | 100 | 2 | |
| HVRW39FD50G0 | 50000 | 1 | 0.5 | 100 | 2 | |
| HVRW39FL10G0 | 10000 | 1 | 0.5 | 200 | 2 | |
| HVRW42FC100K | 0.1 | 1 | 2 | 50 | 20 | |
| HVRW42FC100M | 100 | 1 | 2 | 50 | 20 | |
| HVRW42FC10G0 | 10000 | 1 | 2 | 50 | 20 | |
| HVRW42FC10M0 | 10 | 1 | 2 | 50 | 20 | |
| HVRW42FC1G00 | 1000 | 1 | 2 | 50 | 20 | |
| HVRW42FC1M00 | 1 | 1 | 2 | 50 | 20 | |
| HVRW42FC200M | 200 | 1 | 2 | 50 | 20 | |
| HVRW42FC2G00 | 2000 | 1 | 2 | 50 | 20 | |
| HVRW42GC10G0 | 10000 | 2 | 2 | 50 | 20 | |
| HVRW42JD100M | 100 | 5 | 2 | 100 | 20 | |
| HVRW42JD500M | 500 | 5 | 2 | 100 | 20 | |
| HVRW43DC10G0 | 10000 | 0.5 | 3 | 50 | 30 | |
| HVRW43FC10G0 | 10000 | 1 | 3 | 50 | 30 |
