Stackpole LCB Ceramic Housed Current Sensing Resistors

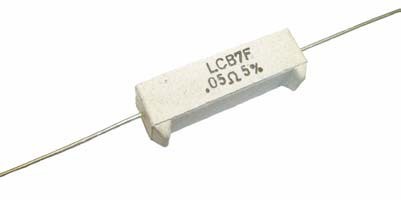

Stackpole LCB current sensing resistors provide low resistance values in a fireproof ceramic housing with two axial leads and welded terminations. These through-hole parts offer power ratings from 3 W to 15 W at 70 °C.
Download the LCB series datasheet (PDF)
Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.
| Part Number | Resistance | Tolerance (±%) | Power at 70 °C (W) | Datasheet |
|---|---|---|---|---|
| Part Number | Resistance | Tolerance (±%) | Power at 70 °C (W) | Datasheet |
| LCB10FB10L0 | 10 mΩ | 1 | 10 | |
| LCB10FB50L0 | 50 mΩ | 1 | 10 | |
| LCB10FBR100 | 100 mΩ | 1 | 10 | |
| LCB10JB20L0 | 20 mΩ | 5 | 10 | |
| LCB10JBR100 | 100 mΩ | 5 | 10 | |
| LCB15FB10L0 | 10 mΩ | 1 | 15 | |
| LCB15JBR100 | 100 mΩ | 5 | 15 | |
| LCB15JBR200 | 200 mΩ | 5 | 15 | |
| LCB3FB30L0 | 30 mΩ | 1 | 3 | |
| LCB3JB20L0 | 20 mΩ | 5 | 3 | |
| LCB5FB15L0 | 15 mΩ | 1 | 5 | |
| LCB5FB20L0 | 20 mΩ | 1 | 5 | |
| LCB5JB10L0 | 10 mΩ | 5 | 5 | |
| LCB5JB15L0 | 15 mΩ | 5 | 5 | |
| LCB5JB22L0 | 22 mΩ | 5 | 5 | |
| LCB5JB30L0 | 30 mΩ | 5 | 5 | |
| LCB5JB33L0 | 33 mΩ | 5 | 5 | |
| LCB5JB35L0 | 35 mΩ | 5 | 5 | |
| LCB5JB50L0 | 50 mΩ | 5 | 5 | |
| LCB5JB51L0 | 51 mΩ | 5 | 5 | |
| LCB5JB5L00 | 5 mΩ | 5 | 5 | |
| LCB5JB6L00 | 6 mΩ | 5 | 5 | |
| LCB5JBR100 | 100 mΩ | 5 | 5 | |
| LCB7FB10L0 | 10 mΩ | 1 | 7 | |
| LCB7FB15L0 | 15 mΩ | 1 | 7 | |
| LCB7FB20L0 | 20 mΩ | 1 | 7 | |
| LCB7JB10L0 | 10 mΩ | 5 | 7 | |
| LCB7JBR100 | 100 mΩ | 5 | 7 |
