Stackpole MHL Metal Clad Wirewound Resistors

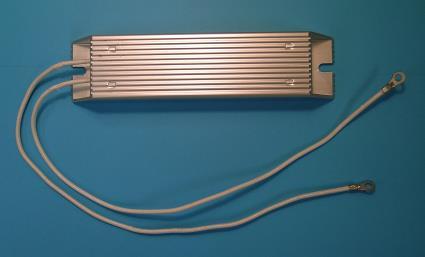

Stackpole MHL metal clad wirewound resistors provide high-power chassis-mount options. MHL identifies the standard construction; NMHL identifies the non-inductive construction. Use the Series filter to distinguish them. The manufacturer specifies a maximum TCR of 260 ppm/°C for this family.
Download the MHL family datasheet (PDF)
Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.
| Part Number | Series | Resistance | Tolerance (±%) | Power at 25 °C (W) | Datasheet |
|---|---|---|---|---|---|
| Part Number | Series | Resistance | Tolerance (±%) | Power at 25 °C (W) | Datasheet |
| MHL1000KB2R40 | MHL | 2.4 Ω | 10 | 1000 | |
| MHL100JB150R | MHL | 150 Ω | 5 | 100 | |
| MHL100JB5R60 | MHL | 5.6 Ω | 5 | 100 | |
| MHL100JB82R0 | MHL | 82 Ω | 5 | 100 | |
| MHL150KB100R | MHL | 100 Ω | 10 | 150 | |
| MHL200JB2R70 | MHL | 2.7 Ω | 5 | 200 | |
| MHL300JB27R0 | MHL | 27 Ω | 5 | 300 | |
| MHL300KB47R0 | MHL | 47 Ω | 10 | 300 | |
| MHL400JB1R80 | MHL | 1.8 Ω | 5 | 400 | |
| MHL500JB100R | MHL | 100 Ω | 5 | 500 | |
| MHL60FB50R0 | MHL | 50 Ω | 1 | 60 | |
| MHL60JB300R | MHL | 300 Ω | 5 | 60 | |
| MHL60JB4R00 | MHL | 4 Ω | 5 | 60 | |
| MHL60JB50R0 | MHL | 50 Ω | 5 | 60 | |
| MHL60JB750R | MHL | 750 Ω | 5 | 60 | |
| MHL60JB7R00 | MHL | 7 Ω | 5 | 60 | |
| MHL80JB120R | MHL | 120 Ω | 5 | 80 | |
| MHL80JB200R | MHL | 200 Ω | 5 | 80 | |
| NMHL100JB25R0 | NMHL | 25 Ω | 5 | 100 | |
| NMHL200JB25R0 | NMHL | 25 Ω | 5 | 200 |
