Stackpole MPR Flameproof Metal Plate Resistors

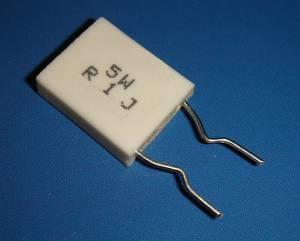

Stackpole MPR flameproof metal plate resistors provide low resistance and low inductance in a through-hole package. Crimped leads help reduce heat transfer to the circuit board. All listed parts have a TCR of ±350 ppm/°C.
Download the MPR series datasheet (PDF)
Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.
| Part Number | Resistance | Tolerance (±%) | Power at 70 °C (W) | Datasheet |
|---|---|---|---|---|
| Part Number | Resistance | Tolerance (±%) | Power at 70 °C (W) | Datasheet |
| MPR3JB10L0 | 10 mΩ | 5 | 3 | |
| MPR3JB20L0 | 20 mΩ | 5 | 3 | |
| MPR3JB25L0 | 25 mΩ | 5 | 3 | |
| MPR3JB30L0 | 30 mΩ | 5 | 3 | |
| MPR3JB50L0 | 50 mΩ | 5 | 3 | |
| MPR3JB75L0 | 75 mΩ | 5 | 3 | |
| MPR3JBR100 | 100 mΩ | 5 | 3 | |
| MPR3KB50L0 | 50 mΩ | 10 | 3 | |
| MPR5JB10L0 | 10 mΩ | 5 | 5 | |
| MPR5JB15L0 | 15 mΩ | 5 | 5 | |
| MPR5JB20L0 | 20 mΩ | 5 | 5 | |
| MPR5JB24L0 | 24 mΩ | 5 | 5 | |
| MPR5JB25L0 | 25 mΩ | 5 | 5 | |
| MPR5JB27L0 | 27 mΩ | 5 | 5 | |
| MPR5JB30L0 | 30 mΩ | 5 | 5 | |
| MPR5JB50L0 | 50 mΩ | 5 | 5 | |
| MPR5JB75L0 | 75 mΩ | 5 | 5 | |
| MPR5JB80L0 | 80 mΩ | 5 | 5 | |
| MPR5JBR100 | 100 mΩ | 5 | 5 | |
| MPR5JBR220 | 220 mΩ | 5 | 5 | |
| MPR5JBR330 | 330 mΩ | 5 | 5 | |
| MPR5KB50L0 | 50 mΩ | 10 | 5 |
