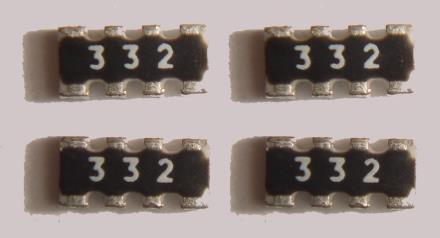

Stackpole RAVF Convex Termination Chip Resistor Arrays
Stackpole RAVF thick film resistor arrays combine isolated or bussed elements in a surface mount package with convex terminations. Type codes ending in D identify isolated circuits; N and R identify the two bussed layouts shown in the datasheet. Compare resistance, tolerance, per-element power, and temperature coefficient below.
Download the RAVF series datasheet (PDF)
Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.
| Part Number | Type Code | Resistance | Tolerance (±%) | Power per Element at 70 °C (W) | TCR (±ppm/°C) | Datasheet |
|---|---|---|---|---|---|---|
| Part Number | Type Code | Resistance | Tolerance (±%) | Power per Element at 70 °C (W) | TCR (±ppm/°C) | Datasheet |
| RAVF052DJT100R | 052D | 100 Ω | 5 | |||
| RAVF052DJT240R | 052D | 240 Ω | 5 | |||
| RAVF052DJT510R | 052D | 510 Ω | 5 | |||
| RAVF102DFT36R0 | 102D | 36 Ω | 1 | 0.063 | 200 | |
| RAVF102DJT100R | 102D | 100 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT10K0 | 102D | 10 kΩ | 5 | 0.063 | 200 | |
| RAVF102DJT10R0 | 102D | 10 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT13R0 | 102D | 13 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT15R0 | 102D | 15 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT18R0 | 102D | 18 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT1K00 | 102D | 1 kΩ | 5 | 0.063 | 200 | |
| RAVF102DJT1K50 | 102D | 1.5 kΩ | 5 | 0.063 | 200 | |
| RAVF102DJT22K0 | 102D | 22 kΩ | 5 | 0.063 | 200 | |
| RAVF102DJT22R0 | 102D | 22 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT27K0 | 102D | 27 kΩ | 5 | 0.063 | 200 | |
| RAVF102DJT27R0 | 102D | 27 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT30R0 | 102D | 30 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT330R | 102D | 330 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT33R0 | 102D | 33 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT36R0 | 102D | 36 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT39K0 | 102D | 39 kΩ | 5 | 0.063 | 200 | |
| RAVF102DJT39R0 | 102D | 39 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT3R00 | 102D | 3 Ω | 5 | 0.063 | 400 | |
| RAVF102DJT43R0 | 102D | 43 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT47K0 | 102D | 47 kΩ | 5 | 0.063 | 200 | |
| RAVF102DJT47R0 | 102D | 47 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT4K70 | 102D | 4.7 kΩ | 5 | 0.063 | 200 | |
| RAVF102DJT510R | 102D | 510 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT51R0 | 102D | 51 Ω | 5 | 0.063 | 200 | |
| RAVF102DJT5R10 | 102D | 5.1 Ω | 5 | 0.063 | 400 | |
| RAVF102DJT68K0 | 102D | 68 kΩ | 5 | 0.063 | 200 | |
| RAVF102DJT75R0 | 102D | 75 Ω | 5 | 0.063 | 200 | |
| RAVF102DZT0R00 | 102D | 0 Ω | ||||
| RAVF104DFT100K | 104D | 100 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT100R | 104D | 100 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT10K0 | 104D | 10 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT10R0 | 104D | 10 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT110K | 104D | 110 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT110R | 104D | 110 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT11K0 | 104D | 11 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT11R0 | 104D | 11 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT120K | 104D | 120 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT120R | 104D | 120 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT12K0 | 104D | 12 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT12R0 | 104D | 12 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT130K | 104D | 130 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT130R | 104D | 130 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT13K0 | 104D | 13 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT13R0 | 104D | 13 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT150K | 104D | 150 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT150R | 104D | 150 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT15K0 | 104D | 15 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT15R0 | 104D | 15 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT160K | 104D | 160 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT160R | 104D | 160 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT16K0 | 104D | 16 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT16R0 | 104D | 16 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT180K | 104D | 180 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT180R | 104D | 180 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT18K0 | 104D | 18 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT18R0 | 104D | 18 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT1K00 | 104D | 1 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT1K10 | 104D | 1.1 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT1K20 | 104D | 1.2 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT1K30 | 104D | 1.3 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT1K50 | 104D | 1.5 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT1K60 | 104D | 1.6 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT1K80 | 104D | 1.8 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT1M00 | 104D | 1 MΩ | 1 | 0.063 | 200 | |
| RAVF104DFT200K | 104D | 200 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT200R | 104D | 200 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT20K0 | 104D | 20 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT20R0 | 104D | 20 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT220K | 104D | 220 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT220R | 104D | 220 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT22K0 | 104D | 22 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT22R0 | 104D | 22 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT240K | 104D | 240 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT240R | 104D | 240 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT24K0 | 104D | 24 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT24R0 | 104D | 24 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT270K | 104D | 270 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT270R | 104D | 270 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT27K0 | 104D | 27 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT27R0 | 104D | 27 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT2K00 | 104D | 2 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT2K20 | 104D | 2.2 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT2K40 | 104D | 2.4 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT2K70 | 104D | 2.7 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT300K | 104D | 300 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT300R | 104D | 300 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT30K0 | 104D | 30 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT30R0 | 104D | 30 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT330K | 104D | 330 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT330R | 104D | 330 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT33K0 | 104D | 33 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT33R0 | 104D | 33 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT360K | 104D | 360 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT360R | 104D | 360 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT36K0 | 104D | 36 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT36R0 | 104D | 36 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT390K | 104D | 390 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT390R | 104D | 390 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT39K0 | 104D | 39 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT39R0 | 104D | 39 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT3K00 | 104D | 3 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT3K30 | 104D | 3.3 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT3K60 | 104D | 3.6 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT3K90 | 104D | 3.9 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT430K | 104D | 430 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT430R | 104D | 430 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT43K0 | 104D | 43 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT43R0 | 104D | 43 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT470K | 104D | 470 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT470R | 104D | 470 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT47K0 | 104D | 47 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT47R0 | 104D | 47 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT49R9 | 104D | 49.9 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT4K30 | 104D | 4.3 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT4K70 | 104D | 4.7 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT510K | 104D | 510 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT510R | 104D | 510 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT51K0 | 104D | 51 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT51R0 | 104D | 51 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT560K | 104D | 560 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT560R | 104D | 560 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT56K0 | 104D | 56 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT56R0 | 104D | 56 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT5K10 | 104D | 5.1 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT5K60 | 104D | 5.6 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT620K | 104D | 620 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT620R | 104D | 620 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT62K0 | 104D | 62 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT62R0 | 104D | 62 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT680K | 104D | 680 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT680R | 104D | 680 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT68K0 | 104D | 68 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT68R0 | 104D | 68 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT6K20 | 104D | 6.2 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT6K80 | 104D | 6.8 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT750K | 104D | 750 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT750R | 104D | 750 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT75K0 | 104D | 75 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT75R0 | 104D | 75 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT7K50 | 104D | 7.5 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT820K | 104D | 820 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT820R | 104D | 820 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT82K0 | 104D | 82 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT82R0 | 104D | 82 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT8K20 | 104D | 8.2 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT910K | 104D | 910 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT910R | 104D | 910 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT91K0 | 104D | 91 kΩ | 1 | 0.063 | 200 | |
| RAVF104DFT91R0 | 104D | 91 Ω | 1 | 0.063 | 200 | |
| RAVF104DFT9K10 | 104D | 9.1 kΩ | 1 | 0.063 | 200 | |
| RAVF104DGT39R0 | 104D | 39 Ω | 2 | 0.063 | 200 | |
| RAVF104DJT100K | 104D | 100 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT100R | 104D | 100 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT10K0 | 104D | 10 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT10R0 | 104D | 10 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT110K | 104D | 110 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT110R | 104D | 110 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT11K0 | 104D | 11 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT11R0 | 104D | 11 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT120K | 104D | 120 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT120R | 104D | 120 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT12K0 | 104D | 12 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT12R0 | 104D | 12 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT130K | 104D | 130 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT130R | 104D | 130 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT13K0 | 104D | 13 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT13R0 | 104D | 13 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT150K | 104D | 150 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT150R | 104D | 150 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT15K0 | 104D | 15 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT15R0 | 104D | 15 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT160K | 104D | 160 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT160R | 104D | 160 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT16K0 | 104D | 16 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT16R0 | 104D | 16 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT180K | 104D | 180 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT180R | 104D | 180 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT18K0 | 104D | 18 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT18R0 | 104D | 18 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT1K00 | 104D | 1 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT1K10 | 104D | 1.1 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT1K20 | 104D | 1.2 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT1K30 | 104D | 1.3 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT1K50 | 104D | 1.5 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT1K60 | 104D | 1.6 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT1K80 | 104D | 1.8 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT1M00 | 104D | 1 MΩ | 5 | 0.063 | 200 | |
| RAVF104DJT1R00 | 104D | 1 Ω | 5 | 0.063 | 400 | |
| RAVF104DJT200K | 104D | 200 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT200R | 104D | 200 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT20K0 | 104D | 20 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT20R0 | 104D | 20 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT220K | 104D | 220 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT220R | 104D | 220 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT22K0 | 104D | 22 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT22R0 | 104D | 22 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT240K | 104D | 240 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT240R | 104D | 240 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT24K0 | 104D | 24 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT24R0 | 104D | 24 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT270K | 104D | 270 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT270R | 104D | 270 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT27K0 | 104D | 27 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT27R0 | 104D | 27 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT2K00 | 104D | 2 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT2K20 | 104D | 2.2 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT2K40 | 104D | 2.4 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT2K70 | 104D | 2.7 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT300K | 104D | 300 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT300R | 104D | 300 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT30K0 | 104D | 30 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT30R0 | 104D | 30 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT330K | 104D | 330 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT330R | 104D | 330 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT33K0 | 104D | 33 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT33R0 | 104D | 33 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT360K | 104D | 360 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT360R | 104D | 360 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT36K0 | 104D | 36 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT36R0 | 104D | 36 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT390K | 104D | 390 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT390R | 104D | 390 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT39K0 | 104D | 39 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT39R0 | 104D | 39 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT3K00 | 104D | 3 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT3K30 | 104D | 3.3 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT3K60 | 104D | 3.6 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT3K90 | 104D | 3.9 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT3R00 | 104D | 3 Ω | 5 | 0.063 | 400 | |
| RAVF104DJT3R30 | 104D | 3.3 Ω | 5 | 0.063 | 400 | |
| RAVF104DJT3R90 | 104D | 3.9 Ω | 5 | 0.063 | 400 | |
| RAVF104DJT430K | 104D | 430 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT430R | 104D | 430 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT43K0 | 104D | 43 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT43R0 | 104D | 43 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT470K | 104D | 470 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT470R | 104D | 470 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT47K0 | 104D | 47 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT47R0 | 104D | 47 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT4K30 | 104D | 4.3 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT4K70 | 104D | 4.7 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT510K | 104D | 510 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT510R | 104D | 510 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT51K0 | 104D | 51 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT51R0 | 104D | 51 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT560K | 104D | 560 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT560R | 104D | 560 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT56K0 | 104D | 56 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT56R0 | 104D | 56 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT5K10 | 104D | 5.1 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT5K60 | 104D | 5.6 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT5R10 | 104D | 5.1 Ω | 5 | 0.063 | 400 | |
| RAVF104DJT620K | 104D | 620 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT620R | 104D | 620 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT62K0 | 104D | 62 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT62R0 | 104D | 62 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT680K | 104D | 680 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT680R | 104D | 680 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT68K0 | 104D | 68 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT68R0 | 104D | 68 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT6K20 | 104D | 6.2 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT6K80 | 104D | 6.8 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT750K | 104D | 750 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT750R | 104D | 750 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT75K0 | 104D | 75 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT75R0 | 104D | 75 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT7K50 | 104D | 7.5 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT7R50 | 104D | 7.5 Ω | 5 | 0.063 | 400 | |
| RAVF104DJT820K | 104D | 820 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT820R | 104D | 820 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT82K0 | 104D | 82 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT82R0 | 104D | 82 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT8K20 | 104D | 8.2 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT910K | 104D | 910 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT910R | 104D | 910 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT91K0 | 104D | 91 kΩ | 5 | 0.063 | 200 | |
| RAVF104DJT91R0 | 104D | 91 Ω | 5 | 0.063 | 200 | |
| RAVF104DJT9K10 | 104D | 9.1 kΩ | 5 | 0.063 | 200 | |
| RAVF104DZT0R00 | 104D | 0 Ω | ||||
| RAVF162DFT10K0 | 162D | 10 kΩ | 1 | 0.063 | 200 | |
| RAVF162DFT10R0 | 162D | 10 Ω | 1 | 0.063 | 200 | |
| RAVF162DFT1K00 | 162D | 1 kΩ | 1 | 0.063 | 200 | |
| RAVF162DJT100K | 162D | 100 kΩ | 5 | 0.063 | 200 | |
| RAVF162DJT10K0 | 162D | 10 kΩ | 5 | 0.063 | 200 | |
| RAVF162DJT10R0 | 162D | 10 Ω | 5 | 0.063 | 200 | |
| RAVF162DJT1K00 | 162D | 1 kΩ | 5 | 0.063 | 200 | |
| RAVF162DJT20K0 | 162D | 20 kΩ | 5 | 0.063 | 200 | |
| RAVF162DJT220K | 162D | 220 kΩ | 5 | 0.063 | 200 | |
| RAVF162DJT22R0 | 162D | 22 Ω | 5 | 0.063 | 200 | |
| RAVF162DJT2K00 | 162D | 2 kΩ | 5 | 0.063 | 200 | |
| RAVF162DJT330K | 162D | 330 kΩ | 5 | 0.063 | 200 | |
| RAVF162DJT3R00 | 162D | 3 Ω | 5 | 0.063 | 200 | |
| RAVF162DJT47R0 | 162D | 47 Ω | 5 | 0.063 | 200 | |
| RAVF162DJT4K70 | 162D | 4.7 kΩ | 5 | 0.063 | 200 | |
| RAVF162DZT0R00 | 162D | 0 Ω | ||||
| RAVF164DFT100R | 164D | 100 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT10K0 | 164D | 10 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT10R0 | 164D | 10 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT110K | 164D | 110 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT110R | 164D | 110 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT115K | 164D | 115 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT11K0 | 164D | 11 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT11K5 | 164D | 11.5 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT11R0 | 164D | 11 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT120K | 164D | 120 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT120R | 164D | 120 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT12K0 | 164D | 12 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT12R0 | 164D | 12 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT130K | 164D | 130 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT130R | 164D | 130 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT13K0 | 164D | 13 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT13R0 | 164D | 13 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT150K | 164D | 150 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT150R | 164D | 150 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT15K0 | 164D | 15 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT15R0 | 164D | 15 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT160K | 164D | 160 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT160R | 164D | 160 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT16K0 | 164D | 16 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT16R0 | 164D | 16 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT180K | 164D | 180 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT180R | 164D | 180 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT18K0 | 164D | 18 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT18R0 | 164D | 18 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT1K00 | 164D | 1 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT1K10 | 164D | 1.1 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT1K20 | 164D | 1.2 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT1K30 | 164D | 1.3 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT1K50 | 164D | 1.5 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT1K60 | 164D | 1.6 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT1K80 | 164D | 1.8 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT1M00 | 164D | 1 MΩ | 1 | 0.1 | 200 | |
| RAVF164DFT200K | 164D | 200 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT200R | 164D | 200 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT20K0 | 164D | 20 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT20R0 | 164D | 20 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT220K | 164D | 220 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT220R | 164D | 220 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT22K0 | 164D | 22 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT22R0 | 164D | 22 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT240K | 164D | 240 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT240R | 164D | 240 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT24K0 | 164D | 24 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT24R0 | 164D | 24 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT270K | 164D | 270 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT270R | 164D | 270 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT27K0 | 164D | 27 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT27R0 | 164D | 27 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT2K00 | 164D | 2 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT2K20 | 164D | 2.2 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT2K40 | 164D | 2.4 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT2K70 | 164D | 2.7 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT300K | 164D | 300 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT300R | 164D | 300 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT30K0 | 164D | 30 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT30R0 | 164D | 30 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT330K | 164D | 330 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT330R | 164D | 330 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT33K0 | 164D | 33 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT33R0 | 164D | 33 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT360K | 164D | 360 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT36K0 | 164D | 36 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT36R0 | 164D | 36 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT390K | 164D | 390 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT390R | 164D | 390 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT39K0 | 164D | 39 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT39R0 | 164D | 39 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT3K00 | 164D | 3 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT3K30 | 164D | 3.3 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT3K60 | 164D | 3.6 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT3K90 | 164D | 3.9 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT430K | 164D | 430 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT430R | 164D | 430 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT43K0 | 164D | 43 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT43R0 | 164D | 43 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT470K | 164D | 470 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT470R | 164D | 470 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT47K0 | 164D | 47 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT47R0 | 164D | 47 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT499R | 164D | 499 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT4K30 | 164D | 4.3 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT4K70 | 164D | 4.7 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT510K | 164D | 510 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT510R | 164D | 510 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT51K0 | 164D | 51 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT51R0 | 164D | 51 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT560K | 164D | 560 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT560R | 164D | 560 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT56K0 | 164D | 56 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT56R0 | 164D | 56 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT5K10 | 164D | 5.1 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT5K60 | 164D | 5.6 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT620K | 164D | 620 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT620R | 164D | 620 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT62K0 | 164D | 62 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT62R0 | 164D | 62 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT680K | 164D | 680 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT680R | 164D | 680 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT68K0 | 164D | 68 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT68R0 | 164D | 68 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT6K20 | 164D | 6.2 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT6K80 | 164D | 6.8 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT750K | 164D | 750 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT750R | 164D | 750 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT75K0 | 164D | 75 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT75R0 | 164D | 75 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT7K50 | 164D | 7.5 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT820K | 164D | 820 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT820R | 164D | 820 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT82K0 | 164D | 82 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT82R0 | 164D | 82 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT8K20 | 164D | 8.2 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT910K | 164D | 910 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT910R | 164D | 910 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT91K0 | 164D | 91 kΩ | 1 | 0.1 | 200 | |
| RAVF164DFT91R0 | 164D | 91 Ω | 1 | 0.1 | 200 | |
| RAVF164DFT9K10 | 164D | 9.1 kΩ | 1 | 0.1 | 200 | |
| RAVF164DGT10M0 | 164D | 10 MΩ | 2 | 0.1 | ||
| RAVF164DJT100K | 164D | 100 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT100R | 164D | 100 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT10K0 | 164D | 10 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT10M0 | 164D | 10 MΩ | 5 | 0.1 | ||
| RAVF164DJT10R0 | 164D | 10 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT110K | 164D | 110 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT110R | 164D | 110 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT11K0 | 164D | 11 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT11R0 | 164D | 11 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT120K | 164D | 120 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT120R | 164D | 120 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT12K0 | 164D | 12 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT12R0 | 164D | 12 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT130K | 164D | 130 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT130R | 164D | 130 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT13K0 | 164D | 13 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT13R0 | 164D | 13 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT150K | 164D | 150 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT150R | 164D | 150 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT15K0 | 164D | 15 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT15R0 | 164D | 15 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT160K | 164D | 160 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT160R | 164D | 160 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT16K0 | 164D | 16 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT16R0 | 164D | 16 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT180K | 164D | 180 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT180R | 164D | 180 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT18K0 | 164D | 18 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT18R0 | 164D | 18 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT1K00 | 164D | 1 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT1K10 | 164D | 1.1 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT1K20 | 164D | 1.2 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT1K30 | 164D | 1.3 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT1K50 | 164D | 1.5 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT1K60 | 164D | 1.6 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT1K80 | 164D | 1.8 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT1M00 | 164D | 1 MΩ | 5 | 0.1 | 200 | |
| RAVF164DJT1R00 | 164D | 1 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT1R10 | 164D | 1.1 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT1R20 | 164D | 1.2 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT1R30 | 164D | 1.3 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT1R50 | 164D | 1.5 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT1R60 | 164D | 1.6 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT1R80 | 164D | 1.8 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT200K | 164D | 200 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT200R | 164D | 200 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT20K0 | 164D | 20 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT20R0 | 164D | 20 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT220K | 164D | 220 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT220R | 164D | 220 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT22K0 | 164D | 22 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT22R0 | 164D | 22 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT240K | 164D | 240 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT240R | 164D | 240 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT24K0 | 164D | 24 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT24R0 | 164D | 24 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT270K | 164D | 270 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT270R | 164D | 270 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT27K0 | 164D | 27 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT27R0 | 164D | 27 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT2K00 | 164D | 2 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT2K20 | 164D | 2.2 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT2K40 | 164D | 2.4 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT2K70 | 164D | 2.7 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT2M00 | 164D | 2 MΩ | 5 | 0.1 | ||
| RAVF164DJT2R00 | 164D | 2 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT2R20 | 164D | 2.2 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT2R40 | 164D | 2.4 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT2R70 | 164D | 2.7 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT300K | 164D | 300 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT300R | 164D | 300 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT30K0 | 164D | 30 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT30R0 | 164D | 30 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT330K | 164D | 330 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT330R | 164D | 330 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT33K0 | 164D | 33 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT33R0 | 164D | 33 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT360K | 164D | 360 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT360R | 164D | 360 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT36K0 | 164D | 36 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT36R0 | 164D | 36 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT390K | 164D | 390 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT390R | 164D | 390 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT39K0 | 164D | 39 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT39R0 | 164D | 39 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT3K00 | 164D | 3 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT3K30 | 164D | 3.3 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT3K60 | 164D | 3.6 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT3K90 | 164D | 3.9 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT3M30 | 164D | 3.3 MΩ | 5 | 0.1 | ||
| RAVF164DJT3R00 | 164D | 3 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT3R30 | 164D | 3.3 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT3R60 | 164D | 3.6 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT3R90 | 164D | 3.9 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT430K | 164D | 430 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT430R | 164D | 430 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT43K0 | 164D | 43 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT43R0 | 164D | 43 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT470K | 164D | 470 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT470R | 164D | 470 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT47K0 | 164D | 47 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT47R0 | 164D | 47 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT499K | 164D | 499 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT4K30 | 164D | 4.3 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT4K70 | 164D | 4.7 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT4R30 | 164D | 4.3 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT4R70 | 164D | 4.7 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT510K | 164D | 510 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT510R | 164D | 510 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT51K0 | 164D | 51 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT51R0 | 164D | 51 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT560K | 164D | 560 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT560R | 164D | 560 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT56K0 | 164D | 56 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT56R0 | 164D | 56 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT5K10 | 164D | 5.1 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT5K60 | 164D | 5.6 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT5R10 | 164D | 5.1 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT5R60 | 164D | 5.6 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT620K | 164D | 620 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT620R | 164D | 620 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT62K0 | 164D | 62 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT62R0 | 164D | 62 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT680K | 164D | 680 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT680R | 164D | 680 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT68K0 | 164D | 68 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT68R0 | 164D | 68 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT6K20 | 164D | 6.2 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT6K80 | 164D | 6.8 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT6R20 | 164D | 6.2 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT6R80 | 164D | 6.8 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT750K | 164D | 750 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT750R | 164D | 750 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT75K0 | 164D | 75 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT75R0 | 164D | 75 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT7K50 | 164D | 7.5 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT7R50 | 164D | 7.5 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT820K | 164D | 820 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT820R | 164D | 820 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT82K0 | 164D | 82 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT82R0 | 164D | 82 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT8K20 | 164D | 8.2 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT8R20 | 164D | 8.2 Ω | 5 | 0.1 | 400 | |
| RAVF164DJT910K | 164D | 910 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT910R | 164D | 910 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT91K0 | 164D | 91 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT91R0 | 164D | 91 Ω | 5 | 0.1 | 200 | |
| RAVF164DJT9K10 | 164D | 9.1 kΩ | 5 | 0.1 | 200 | |
| RAVF164DJT9R10 | 164D | 9.1 Ω | 5 | 0.1 | 400 | |
| RAVF164DZT0R00 | 164D | 0 Ω | ||||
| RAVF168DFT100R | 168D | 100 Ω | 1 | 0.063 | 200 | |
| RAVF168DFT10K0 | 168D | 10 kΩ | 1 | 0.063 | 200 | |
| RAVF168DFT130R | 168D | 130 Ω | 1 | 0.063 | 200 | |
| RAVF168DFT1K00 | 168D | 1 kΩ | 1 | 0.063 | 200 | |
| RAVF168DFT24R9 | 168D | 24.9 Ω | 1 | 0.063 | 200 | |
| RAVF168DFT47R0 | 168D | 47 Ω | 1 | 0.063 | 200 | |
| RAVF168DFT4K70 | 168D | 4.7 kΩ | 1 | 0.063 | 200 | |
| RAVF168DJT100K | 168D | 100 kΩ | 5 | 0.063 | 250 | |
| RAVF168DJT100R | 168D | 100 Ω | 5 | 0.063 | 250 | |
| RAVF168DJT10K0 | 168D | 10 kΩ | 5 | 0.063 | 250 | |
| RAVF168DJT15R0 | 168D | 15 Ω | 5 | 0.063 | 250 | |
| RAVF168DJT160R | 168D | 160 Ω | 5 | 0.063 | 250 | |
| RAVF168DJT1K00 | 168D | 1 kΩ | 5 | 0.063 | 250 | |
| RAVF168DJT1M00 | 168D | 1 MΩ | 5 | 0.063 | 250 | |
| RAVF168DJT20R0 | 168D | 20 Ω | 5 | 0.063 | 250 | |
| RAVF168DJT220R | 168D | 220 Ω | 5 | 0.063 | 250 | |
| RAVF168DJT22R0 | 168D | 22 Ω | 5 | 0.063 | 250 | |
| RAVF168DJT270R | 168D | 270 Ω | 5 | 0.063 | 250 | |
| RAVF168DJT2K20 | 168D | 2.2 kΩ | 5 | 0.063 | 250 | |
| RAVF168DJT330R | 168D | 330 Ω | 5 | 0.063 | 250 | |
| RAVF168DJT33R0 | 168D | 33 Ω | 5 | 0.063 | 250 | |
| RAVF168DJT43R0 | 168D | 43 Ω | 5 | 0.063 | 250 | |
| RAVF168DJT47R0 | 168D | 47 Ω | 5 | 0.063 | 250 | |
| RAVF168DJT4K70 | 168D | 4.7 kΩ | 5 | 0.063 | 250 | |
| RAVF168DJT56R0 | 168D | 56 Ω | 5 | 0.063 | 250 | |
| RAVF168DJT68R0 | 168D | 68 Ω | 5 | 0.063 | 250 | |
| RAVF168DJT8K20 | 168D | 8.2 kΩ | 5 | 0.063 | 250 | |
| RAVF168DZT0R00 | 168D | 0 Ω | ||||
| RAVF324DJT100K | 324D | 100 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT100R | 324D | 100 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT10K0 | 324D | 10 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT10R0 | 324D | 10 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT110K | 324D | 110 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT110R | 324D | 110 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT11K0 | 324D | 11 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT11R0 | 324D | 11 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT120K | 324D | 120 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT120R | 324D | 120 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT12K0 | 324D | 12 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT12R0 | 324D | 12 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT130K | 324D | 130 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT130R | 324D | 130 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT13K0 | 324D | 13 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT13R0 | 324D | 13 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT150K | 324D | 150 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT150R | 324D | 150 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT15K0 | 324D | 15 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT15R0 | 324D | 15 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT160K | 324D | 160 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT160R | 324D | 160 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT16K0 | 324D | 16 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT16R0 | 324D | 16 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT180K | 324D | 180 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT180R | 324D | 180 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT18K0 | 324D | 18 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT18R0 | 324D | 18 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT1K00 | 324D | 1 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT1K10 | 324D | 1.1 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT1K20 | 324D | 1.2 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT1K30 | 324D | 1.3 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT1K50 | 324D | 1.5 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT1K60 | 324D | 1.6 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT1K80 | 324D | 1.8 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT1M00 | 324D | 1 MΩ | 5 | 0.125 | 200 | |
| RAVF324DJT200K | 324D | 200 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT200R | 324D | 200 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT20K0 | 324D | 20 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT20R0 | 324D | 20 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT220K | 324D | 220 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT220R | 324D | 220 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT22K0 | 324D | 22 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT22R0 | 324D | 22 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT240K | 324D | 240 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT240R | 324D | 240 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT24K0 | 324D | 24 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT24R0 | 324D | 24 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT270K | 324D | 270 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT270R | 324D | 270 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT27K0 | 324D | 27 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT27R0 | 324D | 27 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT2K00 | 324D | 2 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT2K20 | 324D | 2.2 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT2K40 | 324D | 2.4 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT2K70 | 324D | 2.7 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT300K | 324D | 300 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT300R | 324D | 300 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT30K0 | 324D | 30 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT30R0 | 324D | 30 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT330K | 324D | 330 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT330R | 324D | 330 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT33K0 | 324D | 33 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT33R0 | 324D | 33 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT360K | 324D | 360 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT360R | 324D | 360 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT36K0 | 324D | 36 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT36R0 | 324D | 36 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT390K | 324D | 390 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT390R | 324D | 390 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT39K0 | 324D | 39 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT39R0 | 324D | 39 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT3K00 | 324D | 3 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT3K30 | 324D | 3.3 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT3K60 | 324D | 3.6 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT3K90 | 324D | 3.9 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT430K | 324D | 430 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT430R | 324D | 430 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT43K0 | 324D | 43 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT43R0 | 324D | 43 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT470K | 324D | 470 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT470R | 324D | 470 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT47K0 | 324D | 47 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT47R0 | 324D | 47 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT4K30 | 324D | 4.3 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT4K70 | 324D | 4.7 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT510K | 324D | 510 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT510R | 324D | 510 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT51K0 | 324D | 51 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT51R0 | 324D | 51 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT560K | 324D | 560 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT560R | 324D | 560 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT56K0 | 324D | 56 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT56R0 | 324D | 56 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT5K10 | 324D | 5.1 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT5K60 | 324D | 5.6 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT620K | 324D | 620 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT620R | 324D | 620 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT62K0 | 324D | 62 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT62R0 | 324D | 62 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT680K | 324D | 680 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT680R | 324D | 680 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT68K0 | 324D | 68 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT68R0 | 324D | 68 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT6K20 | 324D | 6.2 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT6K80 | 324D | 6.8 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT750K | 324D | 750 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT750R | 324D | 750 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT75K0 | 324D | 75 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT75R0 | 324D | 75 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT7K50 | 324D | 7.5 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT820K | 324D | 820 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT820R | 324D | 820 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT82K0 | 324D | 82 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT82R0 | 324D | 82 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT8K20 | 324D | 8.2 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT910K | 324D | 910 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT910R | 324D | 910 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT91K0 | 324D | 91 kΩ | 5 | 0.125 | 200 | |
| RAVF324DJT91R0 | 324D | 91 Ω | 5 | 0.125 | 200 | |
| RAVF324DJT9K10 | 324D | 9.1 kΩ | 5 | 0.125 | 200 | |
| RAVF324DZT0R00 | 324D | 0 Ω | ||||
| RAVF328NJT100K | 328N | 100 kΩ | 5 | 0.063 | 200 | |
| RAVF328NJT10K0 | 328N | 10 kΩ | 5 | 0.063 | 200 | |
| RAVF328NJT1K00 | 328N | 1 kΩ | 5 | 0.063 | 200 | |
| RAVF328NJT1M00 | 328N | 1 MΩ | 5 | 0.063 | 200 | |
| RAVF328NJT47K0 | 328N | 47 kΩ | 5 | 0.063 | 200 | |
| RAVF328NJT4K70 | 328N | 4.7 kΩ | 5 | 0.063 | 200 | |
| RAVF328RJT100K | 328R | 100 kΩ | 5 | 0.063 | 200 | |
| RAVF328RJT100R | 328R | 100 Ω | 5 | 0.063 | 200 | |
| RAVF328RJT10K0 | 328R | 10 kΩ | 5 | 0.063 | 200 | |
| RAVF328RJT130R | 328R | 130 Ω | 5 | 0.063 | 200 | |
| RAVF328RJT1K00 | 328R | 1 kΩ | 5 | 0.063 | 200 | |
| RAVF328RJT1K50 | 328R | 1.5 kΩ | 5 | 0.063 | 200 | |
| RAVF328RJT1M00 | 328R | 1 MΩ | 5 | 0.063 | 200 | |
| RAVF328RJT2K20 | 328R | 2.2 kΩ | 5 | 0.063 | 200 | |
| RAVF328RJT330R | 328R | 330 Ω | 5 | 0.063 | 200 | |
| RAVF328RJT47K0 | 328R | 47 kΩ | 5 | 0.063 | 200 | |
| RAVF328RJT4K70 | 328R | 4.7 kΩ | 5 | 0.063 | 200 | |
| RAVF328RJT51R0 | 328R | 51 Ω | 5 | 0.063 | 200 |
