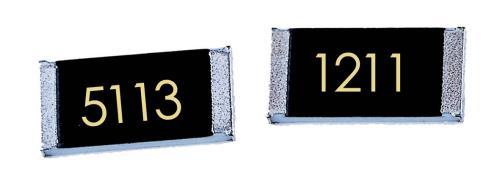

Stackpole RVC Medium Voltage Thick Film Chip Resistors
Stackpole RVC medium voltage thick film chip resistors provide elevated voltage ratings in surface mount packages. Compare case size, resistance, tolerance, power rating, maximum working voltage, and temperature coefficient below.
Download the RVC series datasheet (PDF)
Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.
| Part Number | Case Size | Resistance | Tolerance (±%) | Power at 70 °C (W) | Max Working Voltage (V) | TCR (±ppm/°C) | Datasheet |
|---|---|---|---|---|---|---|---|
| Part Number | Case Size | Resistance | Tolerance (±%) | Power at 70 °C (W) | Max Working Voltage (V) | TCR (±ppm/°C) | Datasheet |
| RVC0402FT100K | 0402 | 100 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT10M0 | 0402 | 10 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT110K | 0402 | 110 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT120K | 0402 | 120 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT130K | 0402 | 130 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT150K | 0402 | 150 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT160K | 0402 | 160 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT165K | 0402 | 165 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT180K | 0402 | 180 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT1M00 | 0402 | 1 MΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT1M10 | 0402 | 1.1 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT1M20 | 0402 | 1.2 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT1M30 | 0402 | 1.3 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT1M50 | 0402 | 1.5 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT1M60 | 0402 | 1.6 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT1M80 | 0402 | 1.8 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT1M96 | 0402 | 1.96 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT200K | 0402 | 200 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT220K | 0402 | 220 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT240K | 0402 | 240 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT249K | 0402 | 249 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT270K | 0402 | 270 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT2M00 | 0402 | 2 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT2M20 | 0402 | 2.2 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT2M40 | 0402 | 2.4 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT2M70 | 0402 | 2.7 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT300K | 0402 | 300 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT330K | 0402 | 330 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT360K | 0402 | 360 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT390K | 0402 | 390 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT39K0 | 0402 | 39 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT3M00 | 0402 | 3 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT3M30 | 0402 | 3.3 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT3M60 | 0402 | 3.6 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT3M90 | 0402 | 3.9 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT402K | 0402 | 402 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT430K | 0402 | 430 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT43K0 | 0402 | 43 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT45K3 | 0402 | 45.3 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT470K | 0402 | 470 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT47K0 | 0402 | 47 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT4M30 | 0402 | 4.3 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT4M70 | 0402 | 4.7 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT510K | 0402 | 510 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT51K0 | 0402 | 51 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT560K | 0402 | 560 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT56K0 | 0402 | 56 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT5M10 | 0402 | 5.1 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT5M60 | 0402 | 5.6 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT620K | 0402 | 620 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT62K0 | 0402 | 62 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT680K | 0402 | 680 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT68K0 | 0402 | 68 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT6M20 | 0402 | 6.2 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT6M80 | 0402 | 6.8 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT750K | 0402 | 750 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT75K0 | 0402 | 75 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT78K7 | 0402 | 78.7 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT7M50 | 0402 | 7.5 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT820K | 0402 | 820 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT82K0 | 0402 | 82 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT82K5 | 0402 | 82.5 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT82R0 | 0402 | 82 Ω | 1 | 0.063 | 100 | ||
| RVC0402FT8M20 | 0402 | 8.2 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402FT910K | 0402 | 910 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT91K0 | 0402 | 91 kΩ | 1 | 0.063 | 100 | 100 | |
| RVC0402FT9M10 | 0402 | 9.1 MΩ | 1 | 0.063 | 100 | 200 | |
| RVC0402JT100K | 0402 | 100 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT100M | 0402 | 100 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT10M0 | 0402 | 10 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT110K | 0402 | 110 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT11M0 | 0402 | 11 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT120K | 0402 | 120 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT12M0 | 0402 | 12 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT130K | 0402 | 130 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT13M0 | 0402 | 13 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT150K | 0402 | 150 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT15M0 | 0402 | 15 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT160K | 0402 | 160 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT16M0 | 0402 | 16 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT180K | 0402 | 180 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT18M0 | 0402 | 18 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT1M00 | 0402 | 1 MΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT1M10 | 0402 | 1.1 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT1M20 | 0402 | 1.2 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT1M30 | 0402 | 1.3 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT1M50 | 0402 | 1.5 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT1M60 | 0402 | 1.6 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT1M80 | 0402 | 1.8 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT200K | 0402 | 200 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT20M0 | 0402 | 20 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT220K | 0402 | 220 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT22M0 | 0402 | 22 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT240K | 0402 | 240 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT24M0 | 0402 | 24 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT270K | 0402 | 270 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT27M0 | 0402 | 27 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT2M00 | 0402 | 2 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT2M20 | 0402 | 2.2 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT2M40 | 0402 | 2.4 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT2M70 | 0402 | 2.7 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT300K | 0402 | 300 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT30M0 | 0402 | 30 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT330K | 0402 | 330 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT33M0 | 0402 | 33 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT360K | 0402 | 360 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT36M0 | 0402 | 36 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT390K | 0402 | 390 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT39M0 | 0402 | 39 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT3M00 | 0402 | 3 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT3M30 | 0402 | 3.3 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT3M60 | 0402 | 3.6 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT3M90 | 0402 | 3.9 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT430K | 0402 | 430 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT43M0 | 0402 | 43 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT470K | 0402 | 470 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT47M0 | 0402 | 47 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT4M30 | 0402 | 4.3 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT4M70 | 0402 | 4.7 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT50M0 | 0402 | 50 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT510K | 0402 | 510 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT51M0 | 0402 | 51 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT560K | 0402 | 560 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT56M0 | 0402 | 56 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT5M10 | 0402 | 5.1 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT5M60 | 0402 | 5.6 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT620K | 0402 | 620 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT62M0 | 0402 | 62 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT680K | 0402 | 680 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT68M0 | 0402 | 68 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT6M20 | 0402 | 6.2 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT6M80 | 0402 | 6.8 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT750K | 0402 | 750 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT75M0 | 0402 | 75 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT7M50 | 0402 | 7.5 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT820K | 0402 | 820 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT82M0 | 0402 | 82 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT8M20 | 0402 | 8.2 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0402JT910K | 0402 | 910 kΩ | 5 | 0.063 | 100 | 100 | |
| RVC0402JT91M0 | 0402 | 91 MΩ | 5 | 0.063 | 100 | 400 | |
| RVC0402JT9M10 | 0402 | 9.1 MΩ | 5 | 0.063 | 100 | 200 | |
| RVC0603FT100K | 0603 | 100 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT107K | 0603 | 107 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT10K0 | 0603 | 10 kΩ | 1 | 0.1 | 200 | ||
| RVC0603FT10M0 | 0603 | 10 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT110K | 0603 | 110 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT120K | 0603 | 120 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT130K | 0603 | 130 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT150K | 0603 | 150 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT160K | 0603 | 160 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT180K | 0603 | 180 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT187K | 0603 | 187 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT1M00 | 0603 | 1 MΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT1M10 | 0603 | 1.1 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT1M20 | 0603 | 1.2 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT1M30 | 0603 | 1.3 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT1M50 | 0603 | 1.5 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT1M60 | 0603 | 1.6 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT1M80 | 0603 | 1.8 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT200K | 0603 | 200 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT220K | 0603 | 220 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT240K | 0603 | 240 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT270K | 0603 | 270 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT2M00 | 0603 | 2 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT2M20 | 0603 | 2.2 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT2M40 | 0603 | 2.4 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT2M70 | 0603 | 2.7 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT300K | 0603 | 300 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT330K | 0603 | 330 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT360K | 0603 | 360 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT390K | 0603 | 390 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT3M00 | 0603 | 3 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT3M30 | 0603 | 3.3 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT3M60 | 0603 | 3.6 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT3M90 | 0603 | 3.9 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT430K | 0603 | 430 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT470K | 0603 | 470 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT47R0 | 0603 | 47 Ω | 1 | 0.1 | 200 | ||
| RVC0603FT4M30 | 0603 | 4.3 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT4M70 | 0603 | 4.7 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT510K | 0603 | 510 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT560K | 0603 | 560 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT56K0 | 0603 | 56 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT5M10 | 0603 | 5.1 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT5M60 | 0603 | 5.6 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT620K | 0603 | 620 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT62K0 | 0603 | 62 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT680K | 0603 | 680 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT68K0 | 0603 | 68 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT6M20 | 0603 | 6.2 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT6M80 | 0603 | 6.8 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT750K | 0603 | 750 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT75K0 | 0603 | 75 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT7M50 | 0603 | 7.5 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT820K | 0603 | 820 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT82K0 | 0603 | 82 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT82K5 | 0603 | 82.5 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT8M20 | 0603 | 8.2 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603FT910K | 0603 | 910 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT91K0 | 0603 | 91 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT97K6 | 0603 | 97.6 kΩ | 1 | 0.1 | 200 | 100 | |
| RVC0603FT9M10 | 0603 | 9.1 MΩ | 1 | 0.1 | 200 | 200 | |
| RVC0603JT100K | 0603 | 100 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT100M | 0603 | 100 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT10M0 | 0603 | 10 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT110K | 0603 | 110 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT11M0 | 0603 | 11 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT120K | 0603 | 120 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT12M0 | 0603 | 12 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT130K | 0603 | 130 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT13M0 | 0603 | 13 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT150K | 0603 | 150 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT15M0 | 0603 | 15 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT160K | 0603 | 160 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT16M0 | 0603 | 16 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT180K | 0603 | 180 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT18M0 | 0603 | 18 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT1M00 | 0603 | 1 MΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT1M10 | 0603 | 1.1 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT1M20 | 0603 | 1.2 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT1M30 | 0603 | 1.3 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT1M50 | 0603 | 1.5 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT1M60 | 0603 | 1.6 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT1M80 | 0603 | 1.8 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT200K | 0603 | 200 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT20M0 | 0603 | 20 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT220K | 0603 | 220 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT22M0 | 0603 | 22 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT240K | 0603 | 240 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT24M0 | 0603 | 24 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT270K | 0603 | 270 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT27M0 | 0603 | 27 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT2M00 | 0603 | 2 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT2M20 | 0603 | 2.2 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT2M40 | 0603 | 2.4 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT2M70 | 0603 | 2.7 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT300K | 0603 | 300 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT30M0 | 0603 | 30 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT330K | 0603 | 330 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT33M0 | 0603 | 33 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT360K | 0603 | 360 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT36M0 | 0603 | 36 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT390K | 0603 | 390 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT39M0 | 0603 | 39 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT3M00 | 0603 | 3 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT3M30 | 0603 | 3.3 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT3M60 | 0603 | 3.6 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT3M90 | 0603 | 3.9 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT430K | 0603 | 430 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT43M0 | 0603 | 43 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT470K | 0603 | 470 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT47M0 | 0603 | 47 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT47R0 | 0603 | 47 Ω | 5 | 0.1 | 200 | ||
| RVC0603JT4M30 | 0603 | 4.3 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT4M70 | 0603 | 4.7 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT50M0 | 0603 | 50 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT510K | 0603 | 510 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT51M0 | 0603 | 51 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT560K | 0603 | 560 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT56M0 | 0603 | 56 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT5M10 | 0603 | 5.1 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT5M60 | 0603 | 5.6 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT620K | 0603 | 620 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT62M0 | 0603 | 62 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT680K | 0603 | 680 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT68M0 | 0603 | 68 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT6M20 | 0603 | 6.2 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT6M80 | 0603 | 6.8 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT750K | 0603 | 750 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT75M0 | 0603 | 75 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT7M50 | 0603 | 7.5 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT820K | 0603 | 820 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT82M0 | 0603 | 82 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT8M20 | 0603 | 8.2 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0603JT910K | 0603 | 910 kΩ | 5 | 0.1 | 200 | 100 | |
| RVC0603JT91M0 | 0603 | 91 MΩ | 5 | 0.1 | 200 | 400 | |
| RVC0603JT9M10 | 0603 | 9.1 MΩ | 5 | 0.1 | 200 | 200 | |
| RVC0805FT100K | 0805 | 100 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT10M0 | 0805 | 10 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT110K | 0805 | 110 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT120K | 0805 | 120 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT130K | 0805 | 130 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT150K | 0805 | 150 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT154R | 0805 | 154 Ω | 1 | 0.125 | 400 | ||
| RVC0805FT160K | 0805 | 160 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT165K | 0805 | 165 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT180K | 0805 | 180 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT1M00 | 0805 | 1 MΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT1M10 | 0805 | 1.1 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT1M20 | 0805 | 1.2 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT1M30 | 0805 | 1.3 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT1M50 | 0805 | 1.5 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT1M60 | 0805 | 1.6 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT1M80 | 0805 | 1.8 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT200K | 0805 | 200 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT200R | 0805 | 200 Ω | 1 | 0.125 | 400 | ||
| RVC0805FT220K | 0805 | 220 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT221R | 0805 | 221 Ω | 1 | 0.125 | 400 | ||
| RVC0805FT240K | 0805 | 240 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT243K | 0805 | 243 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT255K | 0805 | 255 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT270K | 0805 | 270 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT280K | 0805 | 280 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT2M00 | 0805 | 2 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT2M20 | 0805 | 2.2 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT2M40 | 0805 | 2.4 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT2M70 | 0805 | 2.7 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT300K | 0805 | 300 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT330K | 0805 | 330 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT360K | 0805 | 360 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT390K | 0805 | 390 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT3M00 | 0805 | 3 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT3M30 | 0805 | 3.3 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT3M60 | 0805 | 3.6 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT3M90 | 0805 | 3.9 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT430K | 0805 | 430 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT470K | 0805 | 470 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT48K7 | 0805 | 48.7 kΩ | 1 | 0.125 | 400 | ||
| RVC0805FT499K | 0805 | 499 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT49R9 | 0805 | 49.9 Ω | 1 | 0.125 | 400 | ||
| RVC0805FT4K99 | 0805 | 4.99 kΩ | 1 | 0.125 | 400 | ||
| RVC0805FT4M30 | 0805 | 4.3 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT4M70 | 0805 | 4.7 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT510K | 0805 | 510 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT511K | 0805 | 511 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT560K | 0805 | 560 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT5M10 | 0805 | 5.1 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT5M60 | 0805 | 5.6 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT620K | 0805 | 620 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT680K | 0805 | 680 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT6M20 | 0805 | 6.2 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT6M80 | 0805 | 6.8 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT750K | 0805 | 750 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT7M50 | 0805 | 7.5 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT820K | 0805 | 820 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT8M20 | 0805 | 8.2 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805FT90K9 | 0805 | 90.9 kΩ | 1 | 0.125 | 400 | ||
| RVC0805FT910K | 0805 | 910 kΩ | 1 | 0.125 | 400 | 100 | |
| RVC0805FT931R | 0805 | 931 Ω | 1 | 0.125 | 400 | ||
| RVC0805FT9M10 | 0805 | 9.1 MΩ | 1 | 0.125 | 400 | 200 | |
| RVC0805JT100K | 0805 | 100 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT100M | 0805 | 100 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT10M0 | 0805 | 10 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT110K | 0805 | 110 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT11M0 | 0805 | 11 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT120K | 0805 | 120 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT12M0 | 0805 | 12 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT130K | 0805 | 130 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT13M0 | 0805 | 13 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT150K | 0805 | 150 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT15M0 | 0805 | 15 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT160K | 0805 | 160 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT16M0 | 0805 | 16 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT180K | 0805 | 180 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT18M0 | 0805 | 18 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT1M00 | 0805 | 1 MΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT1M10 | 0805 | 1.1 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT1M20 | 0805 | 1.2 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT1M30 | 0805 | 1.3 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT1M50 | 0805 | 1.5 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT1M60 | 0805 | 1.6 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT1M80 | 0805 | 1.8 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT200K | 0805 | 200 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT20M0 | 0805 | 20 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT220K | 0805 | 220 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT22M0 | 0805 | 22 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT240K | 0805 | 240 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT24M0 | 0805 | 24 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT270K | 0805 | 270 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT27M0 | 0805 | 27 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT2M00 | 0805 | 2 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT2M20 | 0805 | 2.2 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT2M40 | 0805 | 2.4 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT2M70 | 0805 | 2.7 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT300K | 0805 | 300 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT30M0 | 0805 | 30 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT330K | 0805 | 330 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT33M0 | 0805 | 33 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT360K | 0805 | 360 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT36M0 | 0805 | 36 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT390K | 0805 | 390 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT39M0 | 0805 | 39 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT3M00 | 0805 | 3 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT3M30 | 0805 | 3.3 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT3M60 | 0805 | 3.6 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT3M90 | 0805 | 3.9 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT430K | 0805 | 430 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT43M0 | 0805 | 43 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT470K | 0805 | 470 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT47K0 | 0805 | 47 kΩ | 5 | 0.125 | 400 | ||
| RVC0805JT47M0 | 0805 | 47 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT47R0 | 0805 | 47 Ω | 5 | 0.125 | 400 | ||
| RVC0805JT4K70 | 0805 | 4.7 kΩ | 5 | 0.125 | 400 | ||
| RVC0805JT4M30 | 0805 | 4.3 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT4M70 | 0805 | 4.7 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT50M0 | 0805 | 50 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT510K | 0805 | 510 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT51M0 | 0805 | 51 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT560K | 0805 | 560 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT56M0 | 0805 | 56 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT5M10 | 0805 | 5.1 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT5M60 | 0805 | 5.6 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT620K | 0805 | 620 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT62M0 | 0805 | 62 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT680K | 0805 | 680 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT68M0 | 0805 | 68 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT6K80 | 0805 | 6.8 kΩ | 5 | 0.125 | 400 | ||
| RVC0805JT6M20 | 0805 | 6.2 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT6M80 | 0805 | 6.8 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT750K | 0805 | 750 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT75M0 | 0805 | 75 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT7M50 | 0805 | 7.5 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT820K | 0805 | 820 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT82M0 | 0805 | 82 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT8M20 | 0805 | 8.2 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC0805JT910K | 0805 | 910 kΩ | 5 | 0.125 | 400 | 100 | |
| RVC0805JT91M0 | 0805 | 91 MΩ | 5 | 0.125 | 400 | 400 | |
| RVC0805JT9M10 | 0805 | 9.1 MΩ | 5 | 0.125 | 400 | 200 | |
| RVC1206FK100K | 1206 | 100 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FK150K | 1206 | 150 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FK24K9 | 1206 | 24.9 kΩ | 1 | 0.25 | 500 | ||
| RVC1206FK25K0 | 1206 | 25 kΩ | 1 | 0.25 | 500 | ||
| RVC1206FK49K9 | 1206 | 49.9 kΩ | 1 | 0.25 | 500 | ||
| RVC1206FK500K | 1206 | 500 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FK50K0 | 1206 | 50 kΩ | 1 | 0.25 | 500 | ||
| RVC1206FK5M00 | 1206 | 5 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT100K | 1206 | 100 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT100R | 1206 | 100 Ω | 1 | 0.25 | 500 | ||
| RVC1206FT10M0 | 1206 | 10 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT110K | 1206 | 110 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT120K | 1206 | 120 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT130K | 1206 | 130 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT150K | 1206 | 150 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT150R | 1206 | 150 Ω | 1 | 0.25 | 500 | ||
| RVC1206FT160K | 1206 | 160 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT180K | 1206 | 180 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT1K21 | 1206 | 1.21 kΩ | 1 | 0.25 | 500 | ||
| RVC1206FT1M00 | 1206 | 1 MΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT1M10 | 1206 | 1.1 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT1M20 | 1206 | 1.2 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT1M30 | 1206 | 1.3 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT1M50 | 1206 | 1.5 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT1M60 | 1206 | 1.6 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT1M80 | 1206 | 1.8 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT1M82 | 1206 | 1.82 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT200K | 1206 | 200 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT210K | 1206 | 210 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT220K | 1206 | 220 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT240K | 1206 | 240 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT249K | 1206 | 249 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT270K | 1206 | 270 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT2M00 | 1206 | 2 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT2M20 | 1206 | 2.2 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT2M26 | 1206 | 2.26 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT2M40 | 1206 | 2.4 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT2M49 | 1206 | 2.49 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT2M70 | 1206 | 2.7 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT300K | 1206 | 300 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT301K | 1206 | 301 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT330K | 1206 | 330 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT360K | 1206 | 360 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT374K | 1206 | 374 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT374R | 1206 | 374 Ω | 1 | 0.25 | 500 | ||
| RVC1206FT390K | 1206 | 390 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT3M00 | 1206 | 3 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT3M30 | 1206 | 3.3 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT3M32 | 1206 | 3.32 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT3M60 | 1206 | 3.6 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT3M90 | 1206 | 3.9 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT412K | 1206 | 412 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT430K | 1206 | 430 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT470K | 1206 | 470 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT475K | 1206 | 475 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT47K5 | 1206 | 47.5 kΩ | 1 | 0.25 | 500 | ||
| RVC1206FT499K | 1206 | 499 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT49K9 | 1206 | 49.9 kΩ | 1 | 0.25 | 500 | ||
| RVC1206FT4M30 | 1206 | 4.3 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT4M42 | 1206 | 4.42 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT4M70 | 1206 | 4.7 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT500K | 1206 | 500 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT510K | 1206 | 510 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT51R1 | 1206 | 51.1 Ω | 1 | 0.25 | 500 | ||
| RVC1206FT560K | 1206 | 560 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT576K | 1206 | 576 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT590K | 1206 | 590 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT5K10 | 1206 | 5.1 kΩ | 1 | 0.25 | 500 | ||
| RVC1206FT5M10 | 1206 | 5.1 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT5M60 | 1206 | 5.6 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT5M62 | 1206 | 5.62 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT619K | 1206 | 619 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT620K | 1206 | 620 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT680K | 1206 | 680 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT6M20 | 1206 | 6.2 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT6M80 | 1206 | 6.8 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT750K | 1206 | 750 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT750R | 1206 | 750 Ω | 1 | 0.25 | 500 | ||
| RVC1206FT75K0 | 1206 | 75 kΩ | 1 | 0.25 | 500 | ||
| RVC1206FT75R0 | 1206 | 75 Ω | 1 | 0.25 | 500 | ||
| RVC1206FT7M50 | 1206 | 7.5 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT806K | 1206 | 806 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT820K | 1206 | 820 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT8M20 | 1206 | 8.2 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206FT910K | 1206 | 910 kΩ | 1 | 0.25 | 500 | 100 | |
| RVC1206FT9M10 | 1206 | 9.1 MΩ | 1 | 0.25 | 500 | 200 | |
| RVC1206JT100K | 1206 | 100 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT100M | 1206 | 100 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT100R | 1206 | 100 Ω | 5 | 0.25 | 500 | ||
| RVC1206JT10K0 | 1206 | 10 kΩ | 5 | 0.25 | 500 | ||
| RVC1206JT10M0 | 1206 | 10 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT110K | 1206 | 110 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT11M0 | 1206 | 11 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT120K | 1206 | 120 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT12K0 | 1206 | 12 kΩ | 5 | 0.25 | 500 | ||
| RVC1206JT12M0 | 1206 | 12 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT130K | 1206 | 130 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT13M0 | 1206 | 13 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT150K | 1206 | 150 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT150R | 1206 | 150 Ω | 5 | 0.25 | 500 | ||
| RVC1206JT15M0 | 1206 | 15 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT160K | 1206 | 160 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT16M0 | 1206 | 16 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT180K | 1206 | 180 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT18M0 | 1206 | 18 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT1K00 | 1206 | 1 kΩ | 5 | 0.25 | 500 | ||
| RVC1206JT1M00 | 1206 | 1 MΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT1M10 | 1206 | 1.1 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT1M20 | 1206 | 1.2 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT1M30 | 1206 | 1.3 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT1M50 | 1206 | 1.5 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT1M60 | 1206 | 1.6 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT1M80 | 1206 | 1.8 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT200K | 1206 | 200 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT20M0 | 1206 | 20 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT220K | 1206 | 220 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT22M0 | 1206 | 22 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT240K | 1206 | 240 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT24M0 | 1206 | 24 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT270K | 1206 | 270 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT27M0 | 1206 | 27 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT2K20 | 1206 | 2.2 kΩ | 5 | 0.25 | 500 | ||
| RVC1206JT2M00 | 1206 | 2 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT2M20 | 1206 | 2.2 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT2M40 | 1206 | 2.4 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT2M70 | 1206 | 2.7 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT300K | 1206 | 300 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT30M0 | 1206 | 30 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT330K | 1206 | 330 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT33M0 | 1206 | 33 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT360K | 1206 | 360 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT360R | 1206 | 360 Ω | 5 | 0.25 | 500 | ||
| RVC1206JT36M0 | 1206 | 36 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT390K | 1206 | 390 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT39M0 | 1206 | 39 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT3M00 | 1206 | 3 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT3M30 | 1206 | 3.3 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT3M60 | 1206 | 3.6 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT3M90 | 1206 | 3.9 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT430K | 1206 | 430 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT43M0 | 1206 | 43 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT470K | 1206 | 470 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT47M0 | 1206 | 47 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT4M30 | 1206 | 4.3 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT4M70 | 1206 | 4.7 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT50M0 | 1206 | 50 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT510K | 1206 | 510 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT51M0 | 1206 | 51 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT560K | 1206 | 560 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT56M0 | 1206 | 56 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT56R0 | 1206 | 56 Ω | 5 | 0.25 | 500 | ||
| RVC1206JT5M00 | 1206 | 5 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT5M10 | 1206 | 5.1 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT5M60 | 1206 | 5.6 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT620K | 1206 | 620 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT62M0 | 1206 | 62 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT680K | 1206 | 680 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT68M0 | 1206 | 68 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT68R0 | 1206 | 68 Ω | 5 | 0.25 | 500 | ||
| RVC1206JT6M20 | 1206 | 6.2 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT6M80 | 1206 | 6.8 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT750K | 1206 | 750 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT75M0 | 1206 | 75 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT75R0 | 1206 | 75 Ω | 5 | 0.25 | 500 | ||
| RVC1206JT7M50 | 1206 | 7.5 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT820K | 1206 | 820 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT82K0 | 1206 | 82 kΩ | 5 | 0.25 | 500 | ||
| RVC1206JT82M0 | 1206 | 82 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT8M20 | 1206 | 8.2 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC1206JT910K | 1206 | 910 kΩ | 5 | 0.25 | 500 | 100 | |
| RVC1206JT91M0 | 1206 | 91 MΩ | 5 | 0.25 | 500 | 400 | |
| RVC1206JT9M10 | 1206 | 9.1 MΩ | 5 | 0.25 | 500 | 200 | |
| RVC2010FT100K | 2010 | 100 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT10K0 | 2010 | 10 kΩ | 1 | 0.5 | 2000 | ||
| RVC2010FT10M0 | 2010 | 10 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT110K | 2010 | 110 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT11M0 | 2010 | 11 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT120K | 2010 | 120 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT12M0 | 2010 | 12 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT130K | 2010 | 130 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT150K | 2010 | 150 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT15M0 | 2010 | 15 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT160K | 2010 | 160 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT16M0 | 2010 | 16 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT180K | 2010 | 180 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT18M0 | 2010 | 18 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT1K82 | 2010 | 1.82 kΩ | 1 | 0.5 | 2000 | ||
| RVC2010FT1M00 | 2010 | 1 MΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT1M10 | 2010 | 1.1 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT1M20 | 2010 | 1.2 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT1M30 | 2010 | 1.3 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT1M50 | 2010 | 1.5 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT1M60 | 2010 | 1.6 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT1M80 | 2010 | 1.8 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT200K | 2010 | 200 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT20M0 | 2010 | 20 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT220K | 2010 | 220 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT240K | 2010 | 240 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT261K | 2010 | 261 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT270K | 2010 | 270 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT274R | 2010 | 274 Ω | 1 | 0.5 | 2000 | ||
| RVC2010FT2M00 | 2010 | 2 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT2M20 | 2010 | 2.2 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT2M21 | 2010 | 2.21 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT2M40 | 2010 | 2.4 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT2M70 | 2010 | 2.7 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT300K | 2010 | 300 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT330K | 2010 | 330 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT360K | 2010 | 360 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT390K | 2010 | 390 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT3M00 | 2010 | 3 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT3M30 | 2010 | 3.3 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT3M48 | 2010 | 3.48 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT3M60 | 2010 | 3.6 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT3M90 | 2010 | 3.9 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT430K | 2010 | 430 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT453K | 2010 | 453 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT470K | 2010 | 470 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT475K | 2010 | 475 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT4M30 | 2010 | 4.3 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT4M70 | 2010 | 4.7 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT510K | 2010 | 510 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT51K0 | 2010 | 51 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT560K | 2010 | 560 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT56K0 | 2010 | 56 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT5M10 | 2010 | 5.1 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT5M60 | 2010 | 5.6 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT620K | 2010 | 620 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT62K0 | 2010 | 62 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT680K | 2010 | 680 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT68K0 | 2010 | 68 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT6M20 | 2010 | 6.2 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT6M80 | 2010 | 6.8 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT750K | 2010 | 750 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT75K0 | 2010 | 75 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT7M50 | 2010 | 7.5 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT820K | 2010 | 820 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT82K0 | 2010 | 82 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT8M20 | 2010 | 8.2 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT910K | 2010 | 910 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT91K0 | 2010 | 91 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT95K3 | 2010 | 95.3 kΩ | 1 | 0.5 | 2000 | 100 | |
| RVC2010FT9M09 | 2010 | 9.09 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010FT9M10 | 2010 | 9.1 MΩ | 1 | 0.5 | 2000 | 200 | |
| RVC2010JT100K | 2010 | 100 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT100M | 2010 | 100 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT100R | 2010 | 100 Ω | 5 | 0.5 | 2000 | ||
| RVC2010JT10M0 | 2010 | 10 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT10R0 | 2010 | 10 Ω | 5 | 0.5 | 2000 | ||
| RVC2010JT110K | 2010 | 110 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT11M0 | 2010 | 11 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT120K | 2010 | 120 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT12M0 | 2010 | 12 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT130K | 2010 | 130 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT13M0 | 2010 | 13 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT150K | 2010 | 150 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT150R | 2010 | 150 Ω | 5 | 0.5 | 2000 | ||
| RVC2010JT15M0 | 2010 | 15 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT160K | 2010 | 160 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT16M0 | 2010 | 16 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT180K | 2010 | 180 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT18M0 | 2010 | 18 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT1M00 | 2010 | 1 MΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT1M10 | 2010 | 1.1 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT1M20 | 2010 | 1.2 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT1M30 | 2010 | 1.3 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT1M50 | 2010 | 1.5 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT1M60 | 2010 | 1.6 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT1M80 | 2010 | 1.8 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT200K | 2010 | 200 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT20M0 | 2010 | 20 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT220K | 2010 | 220 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT22M0 | 2010 | 22 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT240K | 2010 | 240 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT24M0 | 2010 | 24 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT270K | 2010 | 270 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT27M0 | 2010 | 27 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT2K20 | 2010 | 2.2 kΩ | 5 | 0.5 | 2000 | ||
| RVC2010JT2M00 | 2010 | 2 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT2M20 | 2010 | 2.2 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT2M40 | 2010 | 2.4 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT2M70 | 2010 | 2.7 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT300K | 2010 | 300 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT30M0 | 2010 | 30 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT330K | 2010 | 330 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT33M0 | 2010 | 33 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT360K | 2010 | 360 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT36M0 | 2010 | 36 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT390K | 2010 | 390 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT39M0 | 2010 | 39 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT3M00 | 2010 | 3 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT3M30 | 2010 | 3.3 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT3M60 | 2010 | 3.6 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT3M90 | 2010 | 3.9 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT430K | 2010 | 430 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT43M0 | 2010 | 43 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT470K | 2010 | 470 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT47K0 | 2010 | 47 kΩ | 5 | 0.5 | 2000 | ||
| RVC2010JT47M0 | 2010 | 47 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT47R0 | 2010 | 47 Ω | 5 | 0.5 | 2000 | ||
| RVC2010JT4M30 | 2010 | 4.3 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT4M70 | 2010 | 4.7 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT50M0 | 2010 | 50 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT510K | 2010 | 510 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT51M0 | 2010 | 51 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT560K | 2010 | 560 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT56M0 | 2010 | 56 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT5M10 | 2010 | 5.1 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT5M60 | 2010 | 5.6 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT620K | 2010 | 620 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT62M0 | 2010 | 62 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT680K | 2010 | 680 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT68M0 | 2010 | 68 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT6M20 | 2010 | 6.2 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT6M80 | 2010 | 6.8 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT750K | 2010 | 750 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT75M0 | 2010 | 75 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT7M50 | 2010 | 7.5 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT820K | 2010 | 820 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT82M0 | 2010 | 82 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT8M20 | 2010 | 8.2 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2010JT910K | 2010 | 910 kΩ | 5 | 0.5 | 2000 | 100 | |
| RVC2010JT91M0 | 2010 | 91 MΩ | 5 | 0.5 | 2000 | 400 | |
| RVC2010JT9M10 | 2010 | 9.1 MΩ | 5 | 0.5 | 2000 | 200 | |
| RVC2512FT100K | 2512 | 100 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT100R | 2512 | 100 Ω | 1 | 1 | 3000 | ||
| RVC2512FT10M0 | 2512 | 10 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT110K | 2512 | 110 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT11M0 | 2512 | 11 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT120K | 2512 | 120 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT121R | 2512 | 121 Ω | 1 | 1 | 3000 | ||
| RVC2512FT124K | 2512 | 124 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT12M0 | 2512 | 12 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT130K | 2512 | 130 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT150K | 2512 | 150 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT150R | 2512 | 150 Ω | 1 | 1 | 3000 | ||
| RVC2512FT15M0 | 2512 | 15 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT160K | 2512 | 160 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT16M0 | 2512 | 16 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT180K | 2512 | 180 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT18M0 | 2512 | 18 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT1K00 | 2512 | 1 kΩ | 1 | 1 | 3000 | ||
| RVC2512FT1K50 | 2512 | 1.5 kΩ | 1 | 1 | 3000 | ||
| RVC2512FT1M00 | 2512 | 1 MΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT1M10 | 2512 | 1.1 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT1M20 | 2512 | 1.2 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT1M30 | 2512 | 1.3 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT1M50 | 2512 | 1.5 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT1M60 | 2512 | 1.6 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT1M80 | 2512 | 1.8 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT200K | 2512 | 200 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT20M0 | 2512 | 20 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT220K | 2512 | 220 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT22K6 | 2512 | 22.6 kΩ | 1 | 1 | 3000 | ||
| RVC2512FT240K | 2512 | 240 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT270K | 2512 | 270 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT2M00 | 2512 | 2 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT2M20 | 2512 | 2.2 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT2M21 | 2512 | 2.21 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT2M40 | 2512 | 2.4 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT2M70 | 2512 | 2.7 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT300K | 2512 | 300 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT30K0 | 2512 | 30 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT330K | 2512 | 330 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT33K0 | 2512 | 33 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT360K | 2512 | 360 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT36K0 | 2512 | 36 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT390K | 2512 | 390 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT39K0 | 2512 | 39 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT3M00 | 2512 | 3 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT3M30 | 2512 | 3.3 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT3M32 | 2512 | 3.32 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT3M60 | 2512 | 3.6 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT3M90 | 2512 | 3.9 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT402K | 2512 | 402 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT402R | 2512 | 402 Ω | 1 | 1 | 3000 | ||
| RVC2512FT40K2 | 2512 | 40.2 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT41K2 | 2512 | 41.2 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT422K | 2512 | 422 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT430K | 2512 | 430 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT43K0 | 2512 | 43 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT45K3 | 2512 | 45.3 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT470K | 2512 | 470 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT47K0 | 2512 | 47 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT499K | 2512 | 499 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT499R | 2512 | 499 Ω | 1 | 1 | 3000 | ||
| RVC2512FT49K9 | 2512 | 49.9 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT4K99 | 2512 | 4.99 kΩ | 1 | 1 | 3000 | ||
| RVC2512FT4M30 | 2512 | 4.3 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT4M70 | 2512 | 4.7 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT50R0 | 2512 | 50 Ω | 1 | 1 | 3000 | ||
| RVC2512FT510K | 2512 | 510 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT510R | 2512 | 510 Ω | 1 | 1 | 3000 | ||
| RVC2512FT511K | 2512 | 511 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT511R | 2512 | 511 Ω | 1 | 1 | 3000 | ||
| RVC2512FT51K0 | 2512 | 51 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT51R1 | 2512 | 51.1 Ω | 1 | 1 | 3000 | ||
| RVC2512FT560K | 2512 | 560 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT562K | 2512 | 562 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT56K0 | 2512 | 56 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT59K0 | 2512 | 59 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT5M10 | 2512 | 5.1 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT5M60 | 2512 | 5.6 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT620K | 2512 | 620 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT62K0 | 2512 | 62 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT649K | 2512 | 649 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT680K | 2512 | 680 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT68K0 | 2512 | 68 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT6M20 | 2512 | 6.2 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT6M80 | 2512 | 6.8 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT750K | 2512 | 750 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT75K0 | 2512 | 75 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT75R0 | 2512 | 75 Ω | 1 | 1 | 3000 | ||
| RVC2512FT7K87 | 2512 | 7.87 kΩ | 1 | 1 | 3000 | ||
| RVC2512FT7M50 | 2512 | 7.5 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT820K | 2512 | 820 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT82K0 | 2512 | 82 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT8M20 | 2512 | 8.2 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512FT910K | 2512 | 910 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT91K0 | 2512 | 91 kΩ | 1 | 1 | 3000 | 100 | |
| RVC2512FT9M10 | 2512 | 9.1 MΩ | 1 | 1 | 3000 | 200 | |
| RVC2512JK100K | 2512 | 100 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JK1M00 | 2512 | 1 MΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JK50K0 | 2512 | 50 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JK51R0 | 2512 | 51 Ω | 5 | 1 | 3000 | ||
| RVC2512JK5M00 | 2512 | 5 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT100K | 2512 | 100 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT100M | 2512 | 100 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT100R | 2512 | 100 Ω | 5 | 1 | 3000 | ||
| RVC2512JT10M0 | 2512 | 10 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT10R0 | 2512 | 10 Ω | 5 | 1 | 3000 | ||
| RVC2512JT110K | 2512 | 110 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT11M0 | 2512 | 11 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT120K | 2512 | 120 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT12M0 | 2512 | 12 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT130K | 2512 | 130 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT13M0 | 2512 | 13 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT150K | 2512 | 150 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT15M0 | 2512 | 15 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT15R0 | 2512 | 15 Ω | 5 | 1 | 3000 | ||
| RVC2512JT160K | 2512 | 160 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT16M0 | 2512 | 16 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT180K | 2512 | 180 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT180R | 2512 | 180 Ω | 5 | 1 | 3000 | ||
| RVC2512JT18M0 | 2512 | 18 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT1K10 | 2512 | 1.1 kΩ | 5 | 1 | 3000 | ||
| RVC2512JT1M00 | 2512 | 1 MΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT1M10 | 2512 | 1.1 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT1M20 | 2512 | 1.2 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT1M30 | 2512 | 1.3 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT1M50 | 2512 | 1.5 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT1M60 | 2512 | 1.6 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT1M80 | 2512 | 1.8 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT200K | 2512 | 200 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT200R | 2512 | 200 Ω | 5 | 1 | 3000 | ||
| RVC2512JT20K0 | 2512 | 20 kΩ | 5 | 1 | 3000 | ||
| RVC2512JT20M0 | 2512 | 20 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT220K | 2512 | 220 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT220R | 2512 | 220 Ω | 5 | 1 | 3000 | ||
| RVC2512JT22M0 | 2512 | 22 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT240K | 2512 | 240 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT24M0 | 2512 | 24 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT270K | 2512 | 270 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT27K0 | 2512 | 27 kΩ | 5 | 1 | 3000 | ||
| RVC2512JT27M0 | 2512 | 27 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT2K40 | 2512 | 2.4 kΩ | 5 | 1 | 3000 | ||
| RVC2512JT2M00 | 2512 | 2 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT2M20 | 2512 | 2.2 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT2M40 | 2512 | 2.4 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT2M70 | 2512 | 2.7 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT300K | 2512 | 300 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT30M0 | 2512 | 30 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT330K | 2512 | 330 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT33M0 | 2512 | 33 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT360K | 2512 | 360 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT36M0 | 2512 | 36 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT390K | 2512 | 390 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT39M0 | 2512 | 39 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT3M00 | 2512 | 3 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT3M30 | 2512 | 3.3 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT3M60 | 2512 | 3.6 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT3M90 | 2512 | 3.9 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT430K | 2512 | 430 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT43M0 | 2512 | 43 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT470K | 2512 | 470 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT470R | 2512 | 470 Ω | 5 | 1 | 3000 | ||
| RVC2512JT47M0 | 2512 | 47 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT47R0 | 2512 | 47 Ω | 5 | 1 | 3000 | ||
| RVC2512JT499R | 2512 | 499 Ω | 5 | 1 | 3000 | ||
| RVC2512JT4M30 | 2512 | 4.3 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT4M70 | 2512 | 4.7 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT50M0 | 2512 | 50 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT510K | 2512 | 510 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT51M0 | 2512 | 51 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT51R0 | 2512 | 51 Ω | 5 | 1 | 3000 | ||
| RVC2512JT560K | 2512 | 560 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT56M0 | 2512 | 56 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT5M10 | 2512 | 5.1 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT5M60 | 2512 | 5.6 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT620K | 2512 | 620 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT62M0 | 2512 | 62 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT680K | 2512 | 680 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT68K0 | 2512 | 68 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT68M0 | 2512 | 68 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT6M20 | 2512 | 6.2 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT6M80 | 2512 | 6.8 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT750K | 2512 | 750 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT750R | 2512 | 750 Ω | 5 | 1 | 3000 | ||
| RVC2512JT75M0 | 2512 | 75 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT7M50 | 2512 | 7.5 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT820K | 2512 | 820 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT82M0 | 2512 | 82 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT8M20 | 2512 | 8.2 MΩ | 5 | 1 | 3000 | 200 | |
| RVC2512JT910K | 2512 | 910 kΩ | 5 | 1 | 3000 | 100 | |
| RVC2512JT91M0 | 2512 | 91 MΩ | 5 | 1 | 3000 | 400 | |
| RVC2512JT9M10 | 2512 | 9.1 MΩ | 5 | 1 | 3000 | 200 |
