Stackpole RWT Thermal Fusing Vertical Mount Resistors

Stackpole RWT thermal fusing resistors combine a wirewound ceramic element and thermal fuse in a ceramic case for vertical through-hole mounting. All listed parts have ±5% tolerance. Standard A-fuse versions use a 250 V, 2 A fuse with a rated functioning temperature of 142 °C and resistor TCR of ±200 ppm/°C.

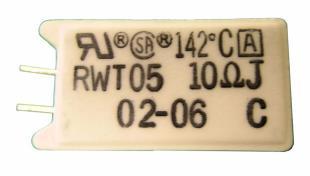

Stackpole RWT series resistors
Representative series image; actual appearance varies by part.

Download the RWT series datasheet (PDF)

Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.

17 Stackpole RWT parts
Part NumberResistanceElement Power at 70 °C (W)Element + Fuse Power at 70 °C (W)VariantDatasheet
Part NumberResistanceElement Power at 70 °C (W)Element + Fuse Power at 70 °C (W)VariantDatasheet
RWT2AJB10R010 Ω21.5StandardPDF
RWT2AJB1R001 Ω21.5StandardPDF
RWT2AJB2R202.2 Ω21.5StandardPDF
RWT2AJB3R303.3 Ω21.5StandardPDF
RWT2AJB43R043 Ω21.5StandardPDF
RWT2AJB47R0-HT47 ΩHTPDF
RWT2AJB4R704.7 Ω21.5StandardPDF
RWT2AJB51R051 Ω21.5StandardPDF
RWT2AJB56R056 Ω21.5StandardPDF
RWT2AJB5R105.1 Ω21.5StandardPDF
RWT5AJB100R100 Ω51.6StandardPDF
RWT5AJB10R010 Ω51.6StandardPDF
RWT5AJB15R015 Ω51.6StandardPDF
RWT5AJB4R704.7 Ω51.6StandardPDF
RWT5AJB5R605.6 Ω51.6StandardPDF
RWT5AJB6R806.8 Ω51.6StandardPDF
RWT5AJB82R082 Ω51.6StandardPDF

The element power rating is distinct from the lower element-plus-fuse assembly rating; both apply at 70 °C. RWT2 is 2 W for the element and 1.5 W for the assembly; RWT5 is 5 W and 1.6 W. The HT variant retains its encoded resistance and tolerance, with unverified power, TCR, and thermal-fuse details left unspecified. Consult the datasheet for selection and operating limits.
