Stackpole TCB Four-Terminal Ceramic Housed Current Sensing Resistors

Stackpole TCB current sensing resistors use a fireproof ceramic housing with four terminals, separating current leads from sensing leads. These through-hole parts offer low inductance, welded terminations, and a shared TCR of ±40 ppm/°C.

Stackpole TCB series resistors

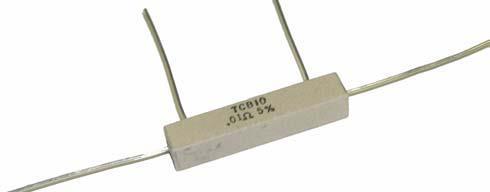

Representative series image; actual appearance varies by part.

Download the TCB series datasheet (PDF)

Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.

12 Stackpole TCB parts
Part NumberResistanceTolerance (±%)Power at 70 °C (W)Datasheet
Part NumberResistanceTolerance (±%)Power at 70 °C (W)Datasheet
TCB10FB10L010 mΩ110PDF
TCB10JB10L010 mΩ510PDF
TCB10JB20L020 mΩ510PDF
TCB10JB25L025 mΩ510PDF
TCB10JBR100100 mΩ510PDF
TCB15FB10L010 mΩ115PDF
TCB15FB40L040 mΩ115PDF
TCB15JBR100100 mΩ515PDF
TCB3FB10L010 mΩ13PDF
TCB5FB10L010 mΩ15PDF
TCB5FB50L050 mΩ15PDF
TCB5JB50L050 mΩ55PDF

Power ratings apply at 70 °C. Maximum working voltage is the square root of rated power multiplied by resistance. Consult the datasheet for sensing-lead connections, derating, and operating limits.
