Stackpole UHVB Ultra-High Voltage Chip Resistors

Stackpole UHVB ultra-high voltage thick film chip resistors use solderable wraparound matte-tin terminations over a nickel barrier. All listed parts have ±1% tolerance and ±100 ppm/°C TCR. Compare case size, resistance, and maximum working voltage below.

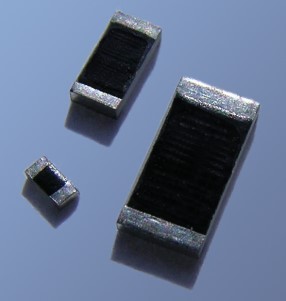

Stackpole UHVB series resistors
Representative series image; actual appearance varies by part.

Download the UHVB series datasheet (PDF)

Search an exact part number or use the dropdowns to compare characteristics. Select a part number to search NAC Semi.

10 Stackpole UHVB parts
Part NumberCase SizeResistanceMax Working Voltage (V)Datasheet
Part NumberCase SizeResistanceMax Working Voltage (V)Datasheet
UHVB2010FCD1G0020101 GΩ6000PDF
UHVB2010FCD500M2010500 MΩ6000PDF
UHVB2512FCD1G0025121 GΩ10000PDF
UHVB2512FCD2G0025122 GΩ10000PDF
UHVB3512FCD1G0035121 GΩ14000PDF
UHVB3512FCD2G0035122 GΩ14000PDF
UHVB4020FCD1G0040201 GΩ16000PDF
UHVB4020FCD2G0040202 GΩ16000PDF
UHVB5020FCD1G0050201 GΩ20000PDF
UHVB5020FCD2G0050202 GΩ20000PDF

Due to the high resistance values offered, the power rating for a given size and resistance value should be calculated by V²/R. Because of the high voltage ratings, these resistors should be potted to ensure terminal isolation.
